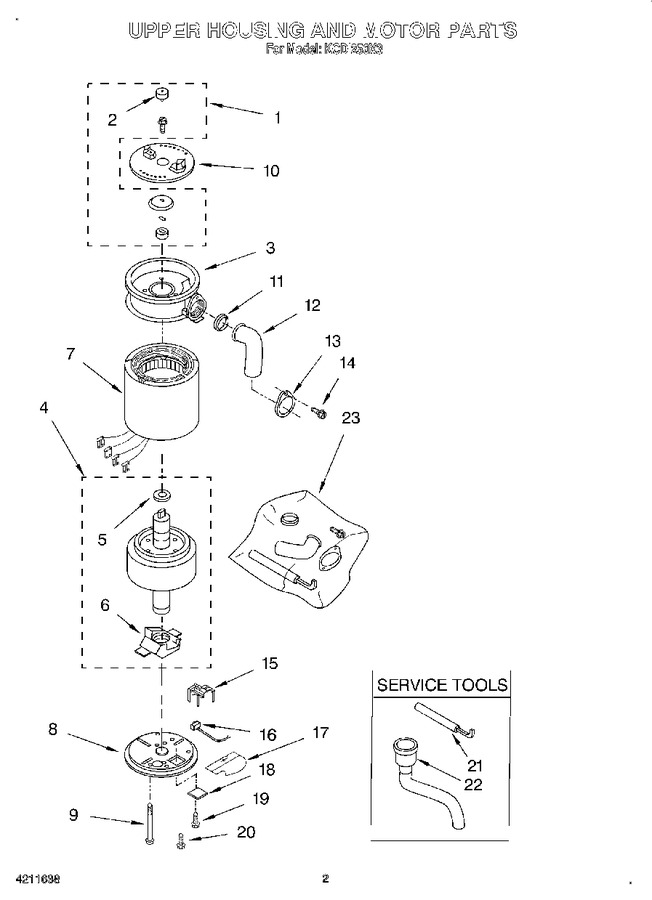

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211578		Kit, Sleeve And Seal (includes Plug, Bolt, Washer, Slinger And Sleeve)				$ 124.78
2	4211578		Plug   (Replaces: 4211341)				$ 124.78
3	4211492		End Bell Assembly, Upper				$ 164.46
4	4211632		Rotor And Shaft Assembly		Appelez-nous	-
5	4211321		Washer		Appelez-nous	-
6	4211322		Centrifugal Actuator Assembly				$ 103.67
7	4211407		Stator Assembly		Appelez-nous	-
8	4211635		End Frame, Assembly (lower)		Appelez-nous	-
9	4211348		Bolt, Thru		Appelez-nous	-
10	4211631		Shredder				$ 133.32
11	4211344		Gasket, Tailpipe				$ 5.83
12	4211317		Tailpipe				$ 82.65
13	4211345		Flange, Tailpipe				$ 6.40
14	WP8204624		Screw, Tailpipe   (Replaces: 4211346)				$ 17.48
15	4211633		Switch, Start & Reverse				$ 136.86
16	4211634		Protect, Overload		Appelez-nous	-
17	4211326		Shield, Wire		Appelez-nous	-
18	4211611		Cover, Terminal		Appelez-nous	-
19	WP98008545		Screw, Terminal Cover   (Replaces: 4211612)				$ 18.60
20	4211330		Screw, Tailpipe		Appelez-nous	-
21	WP8174310		Wrench, Emergency   (Replaces: 4211435)				$ 22.35
22	4211396		Adapter, Sink		Appelez-nous	-
23	4211639		Kit, Installation (includes No. 11, 12, 13 14, 21, Instructions, And Use And Care Guide)		Appelez-nous	-
	LIT4211563		Guide, Use And Care		Appelez-nous	-
	LIT4211562		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
