01 - Control Panel

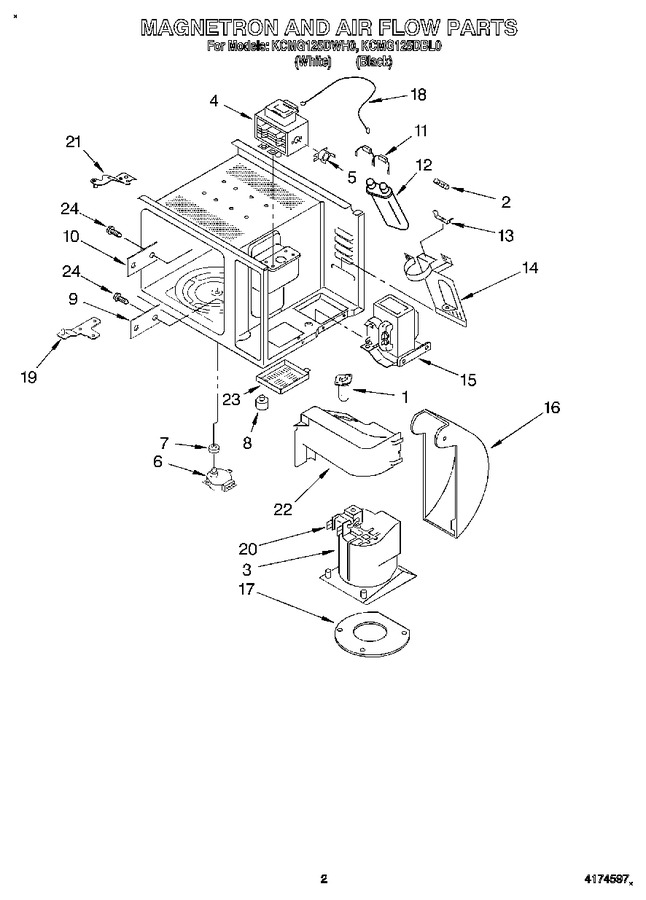

02 - Magnetron And Air Flow, Literature


03 - Door And Latch


04 - Turn Table And Grille


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4375077		Lamp, Oven		Appelez-nous	-
2	4375073		Fuse		Appelez-nous	-
3	4375261		Cap, Fan		Appelez-nous	-
4	W10245183		Magnetron   (Replaces: 4375072)			Immediately	$ 245.45
5	4375280		Thermostat, Magnatron		Appelez-nous	-
6	4375076		Turntable		Appelez-nous	-
7	4375252		Ring, Rubber				$ 38.27
8	4375029		Foot		Appelez-nous	-
9	4375249		Plate, Lower		Appelez-nous	-
10	4375248		Plate, Upper		Appelez-nous	-
11	4375288		Diode		Appelez-nous	-
12	WP4375020		Capacitor   (Replaces: 4375020)				$ 210.76
13	W10245194		Holder, Fuse   (Replaces: 4375231)				$ 87.31
14	4375299		Holder, Cap		Appelez-nous	-
15	WP4375286		Transformer   (Replaces: 4375286)				$ 345.62
16	4375260		Air Duct		Appelez-nous	-
17	4375262		Cap, Bottom		Appelez-nous	-
18	4375290		Wire Harness		Appelez-nous	-
19	4375250		Hinge, Lower		Appelez-nous	-
20	4375278		Motor, Fan				$ 262.38
21	4375301		Hinge, Upper		Appelez-nous	-
22	4375302		Duct, Air		Appelez-nous	-
23	4375303		Cover, Inlet		Appelez-nous	-
24	4375201		Screw		Appelez-nous	-
	LIT4375238		Use And Care Guide		Appelez-nous	-
	LIT4375240		Cook Book		Appelez-nous	-
	LIT4375236		Tech Sheet		Appelez-nous	-
	LIT4375239		Cook Guide Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
