Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4375257 Reflector Appelez-nous -
2 W11512490 Crisping Pan   (Replaces: 4375191) In-Stock Immediately $ 127.58

3 4375256 Reflector Appelez-nous -
4 4375276 Grille, Metal Appelez-nous -
5 W11790998 Tray, Glass   (Replaces: 4375274) Special Order $ 55.02

6 4375253 Support, Grille Appelez-nous -
7 4375275 Support, Turntable Appelez-nous -
8 4375281 Thermostat, Grille Special Order $ 57.27

9 4375279 Thermostat, Oven Special Order $ 50.64

12 4375282 Grille, Element Appelez-nous -
13 4375224 Power Cord Appelez-nous -
14 4375273 Cabinet, Outer (black Model) Appelez-nous -
14 4375298 Cabinet, Outer (white Model) Appelez-nous -
15 W10851464 Handle, Pan   (Replaces: 4378400) Special Order $ 26.07

16 4375304 Plate, Insulation Appelez-nous -
17 4375254 Washer Appelez-nous -
18 4375255 Washer Appelez-nous -
19 4375305 Grill Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

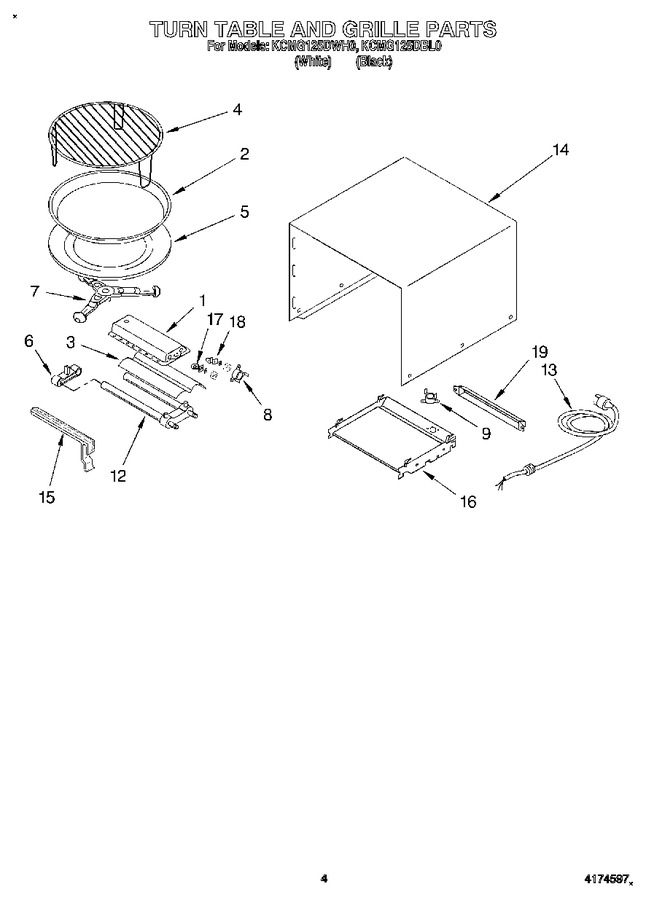

Diagram for KCMG125DBL0
