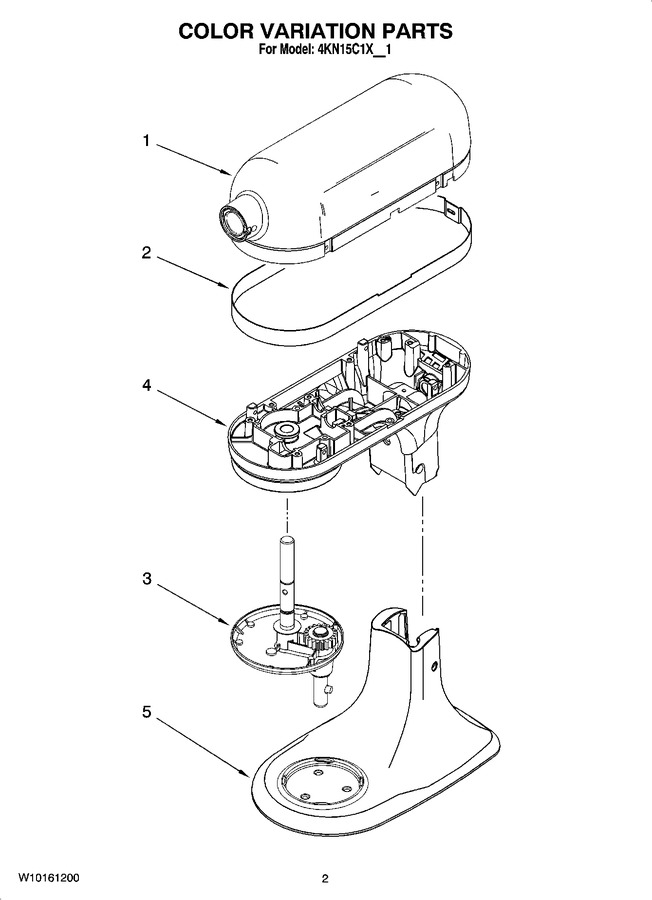

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1 | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1 | 9703433 | Motor Housing (metallic Chrome) |
|
$ 90.15 | |||||
| 2 | W10140521 | Trim Band (platinum/frost) |
|
- | |||||
| 3 | WP9708172 | Planetary (white) (Replaces: 9708172) |
|
Immediately | $ 73.84 | ||||
| 3 | WP9708180 | Planetary (empire Red) (Replaces: 9708180) |
|
Immediately | $ 71.94 | ||||
| 3 | WP9708176 | Planetary (onyx Black) (Replaces: 9708176) |
|
Immediately | $ 73.38 | ||||
| 3 | WP9708175 | Planetary (metallic Chrome) (Replaces: 9708175) |
|
Immediately | $ 70.69 | ||||
| 4 | 9703389 | Lower Gearcase (white) |
|
$ 67.14 | |||||
| 4 | W10140524 | Lower Gearcase (empire Red) |
|
- | |||||
| 4 | 9708486 | Lower Gearcase (onyx Black) |
|
- | |||||
| 4 | 9705555 | Lower Gearcase (metallic Chrome) |
|
- | |||||
| 5 | 9703391 | Pedestal And Foot Assembly (white) |
|
- | |||||
| 5 | W10140527 | Pedestal And Foot Assembly (empire Red) |
|
- | |||||
| 5 | 9708483 | Pedestal And Foot Assembly (onyx Black) |
|
- | |||||
| 5 | 9705554 | Pedestal And Foot Assembly (metallic Chrome) |
|
- |
