SELECT A DIAGRAM
01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit

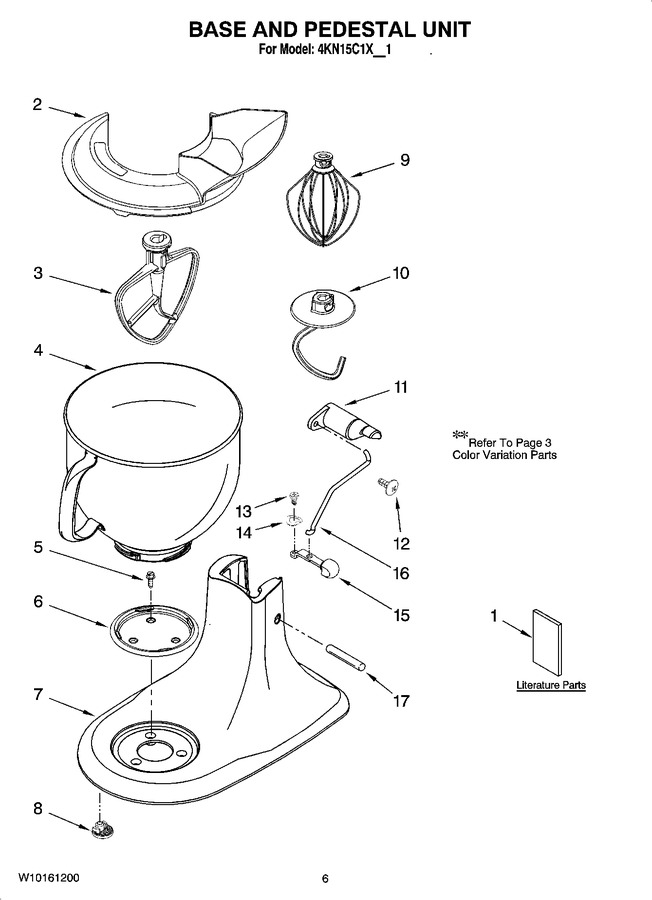

03 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10150043 | Use & Care Guide (canada, Bilingual) |
|
- | |||||
| 1 | W10161200 | Repair Parts List |
|
- | |||||
| 2 | W11312468 | Shield, Pouring (Replaces: 9709923) |
|
$ 43.26 | |||||
| 3 | WPW10672617 | Beater, Flat (Replaces: 9708470) |
|
Immediately | $ 24.92 | ||||
| 4 | 9707956 | Bowl (5 Qt) |
|
- | |||||
| 5 | W11544572 | Screw (Replaces: 3400020) |
|
$ 8.41 | |||||
| 6 | 9703554 | Cap, Screw |
|
- | |||||
| 8 | WP9709707 | Foot (Replaces: 9709707) |
|
Immediately | $ 4.42 | ||||
| 9 | WP9704329 | Whip, Wire (Replaces: 9706446) |
|
Immediately | $ 29.90 | ||||
| 10 | WPW10674618 | Hook, Dough (Replaces: 9708471) |
|
Immediately | $ 31.90 | ||||
| 11 | 9708306 | Cam, Headlock |
|
$ 28.97 | |||||
| 12 | WPW10001180 | Screw (Replaces: 8533885) |
|
$ 8.94 | |||||
| 13 | 6011-006971 | Screw (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 14 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 15 | 9709285 | Lever, Latch (grey) |
|
- | |||||
| 15 | 9709284 | Lever, Latch (black) |
|
$ 22.18 | |||||
| 16 | 9706803 | Link, Latch |
|
$ 21.96 | |||||
| 17 | 9703583 | Pin, Hinge |
|
- | |||||
| 4164778 | Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a)) |
|
- | ||||||
| RVSA | Rotor Slicer/shredder(with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin Slicer (rvsa) (Replaces: 4164750) |
|
$ 115.50 | ||||||
| FVSP | Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp) (Replaces: 4164775) |
|
$ 117.81 | ||||||
| 4164768 | Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) |
|
- | ||||||
| 8211924 | Grain Mill, Kgma |
|
- | ||||||
| 4164749 | Food Grinder (fg-a) |
|
- | ||||||
| 8212519 | Ice Cream Maker (kica0wh0) |
|
- | ||||||
| W11200218 | Grease, Planetary (Replaces: 4160588) |
|
Immediately | $ 86.08 | |||||
| 4164803 | Sausage Stuffer, Kit, Ssa |
|
- | ||||||
| 4164747 | Can Opener, Co |
|
- | ||||||
| 4164748 | Juicer, Je |
|
- | ||||||
| 4162838 | Food Tray (ft) |
|
- | ||||||
| 4164774 | Fruit/vegetable Strainer And Food Grinder, Fvs/fga |
|
- | ||||||
| 4164824 | Pasta Maker Plates Snpa |
|
- |
