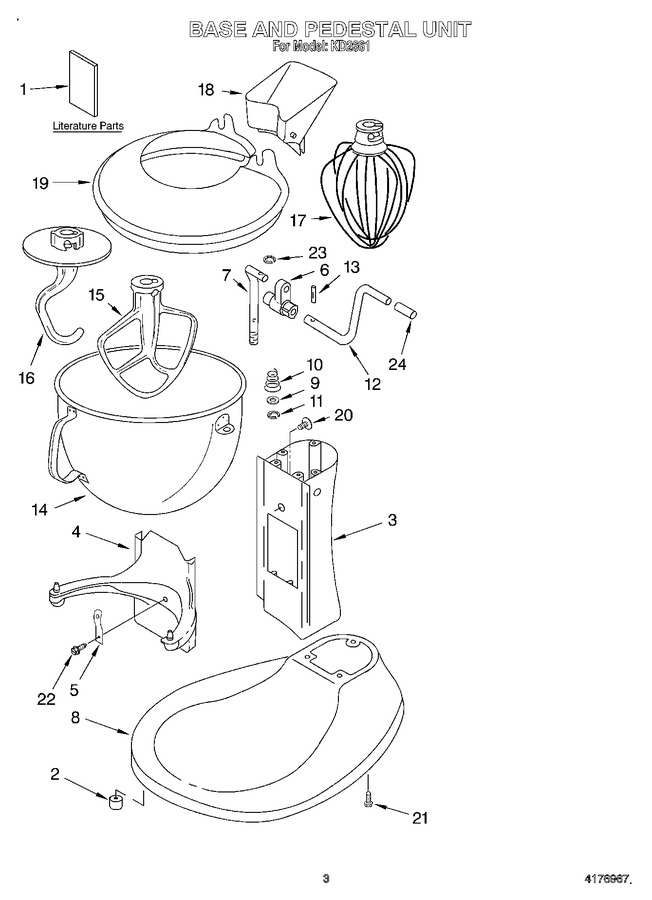

03 - Base & Pedestal, Literature
04 - Case, Gearing And Planetary Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9703377 | Literature Parts (use And Care Guide) |
|
- | |||||
| 1 | LIT4176967 | Literature Parts (repair Parts List) |
|
- | |||||
| 2 | 8211628 | Foot, Rubber (5) (Replaces: 9703414) |
|
$ 7.71 | |||||
| 3 | 9705679 | Column-caviar |
|
- | |||||
| 3 | 9703673 | Column-white |
|
$ 81.26 | |||||
| 3 | 9703525 | Column-imperial Gray |
|
- | |||||
| 3 | 9703526 | Column-imperial Black |
|
- | |||||
| 3 | 9703349 | Column-metallic Chrome |
|
- | |||||
| 3 | 9705320 | Column-onyx Black |
|
- | |||||
| 3 | 9705321 | Column-navy Blue |
|
- | |||||
| 3 | 9705322 | Column-almond Cream |
|
- | |||||
| 3 | 9705323 | Column-hunter Green |
|
- | |||||
| 3 | 9705324 | Column-empire Red |
|
- | |||||
| 3 | 9705325 | Column-majestic Yellow |
|
- | |||||
| 3 | 9705384 | Column-cobalt Blue |
|
- | |||||
| 4 | 9705682 | Bowl Support-caviar |
|
- | |||||
| 4 | 9703674 | Bowl Support-white |
|
$ 74.91 | |||||
| 4 | 9703519 | Bowl Support-imperial Gray |
|
- | |||||
| 4 | 9703520 | Bowl Support-imperial Black |
|
- | |||||
| 4 | 9703397 | Bowl Support-metallic Chrome |
|
$ 76.42 | |||||
| 4 | 9705356 | Bowl Support-onyx Black |
|
- | |||||
| 4 | 9705357 | Bowl Support-navy Blue |
|
- | |||||
| 4 | 9705358 | Bowl Support-almond Cream |
|
- | |||||
| 4 | 9705359 | Bowl Support-hunter Green |
|
- | |||||
| 4 | 9705360 | Bowl Support-empire Red |
|
- | |||||
| 4 | 9705361 | Bowl Support-majestic Yellow |
|
- | |||||
| 4 | 9705390 | Bowl Support-cobalt Blue |
|
- | |||||
| 5 | WPW10504114 | Latch, Bowl Spring (Replaces: 9703474) |
|
Immediately | $ 5.14 | ||||
| 6 | WP9706885 | Arm, Bowl Lift (Replaces: 9703470) |
|
Immediately | $ 5.17 | ||||
| 7 | 9703458 | Rod, Bowl Lift |
|
- | |||||
| 8 | 9703510 | Bowl & Foot Assy-imperial Gray |
|
- | |||||
| 8 | 9703690 | Bowl & Foot Assy-white |
|
- | |||||
| 8 | 9705676 | Bowl & Foot Assy-caviar |
|
- | |||||
| 8 | 9705388 | Bowl & Foot Assy-cobalt Blue |
|
- | |||||
| 8 | 9705349 | Bowl & Foot Assy-majestic Yellow |
|
- | |||||
| 8 | 9705348 | Bowl & Foot Assy-empire Red |
|
- | |||||
| 8 | 9705347 | Bowl & Foot Assy-hunter Green |
|
- | |||||
| 8 | W11672227 | Bowl & Foot Assy-almond Cream (Replaces: 9705346) |
|
- | |||||
| 8 | 9705345 | Bowl & Foot Assy-navy Blue |
|
- | |||||
| 8 | 9705344 | Bowl & Foot Assy-onyx Black |
|
- | |||||
| 8 | 9703346 | Bowl & Foot Assy-metallic Chrome |
|
- | |||||
| 8 | 9703511 | Bowl & Foot Assy-imperial Black |
|
- | |||||
| 9 | W11708395 | Washer (Replaces: 9703439) |
|
$ 4.47 | |||||
| 10 | 4159622 | Spring (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 11 | 9703487 | Clip |
|
- | |||||
| 12 | W11778321 | Handle, Bowl Lift (Replaces: 9703457) |
|
$ 24.01 | |||||
| 13 | WP9703442 | Roll Pin (Replaces: 9703442) |
|
$ 4.28 | |||||
| 14 | W11770849 | Bowl (6 Qt) (Replaces: 9703687) |
|
Immediately | $ 91.11 | ||||
| 15 | WPW10672616 | Beater, Flat (Replaces: 9703686) |
|
Immediately | $ 29.21 | ||||
| 16 | WPW10674620 | Dough Hook (Replaces: 9703685) |
|
Immediately | $ 25.18 | ||||
| 17 | WP9703491 | Wire Whip (Replaces: 9703491) |
|
Immediately | $ 43.13 | ||||
| 18 | WPW10617049 | Pouring Spout (Replaces: 9703534) |
|
$ 63.02 | |||||
| 19 | WPW10617049 | Pouring Shield (Replaces: 9703533) |
|
$ 63.02 | |||||
| 20 | W11721849 | Cam, Adjusting (Replaces: 9703426) |
|
$ 6.08 | |||||
| 21 | W10913677 | Screw, 1/4-20 X 3/4 (Replaces: 3400200) |
|
$ 4.64 | |||||
| 22 | W10861883 | Screw, 10-24 X 1/2 (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 23 | WP9703307 | Clip (Replaces: 9703307) |
|
Immediately | $ 4.42 | ||||
| 24 | W11501449 | Handle (Replaces: 9703698) |
|
$ 24.12 |
