Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9703311 Gearcase Motor Housing-white Special Order $ 88.20

1 9705380 Gearcase Motor Housing-cobalt Blue Appelez-nous -
1 9703531 Gearcase Motor Housing-imperial Gray Special Order $ 79.45

1 9705693 Gearcase Motor Housing-caviar Appelez-nous -
1 9703532 Gearcase Motor Housing-imperial Black Special Order $ 88.20

1 9703433 Gearcase Motor Housing-metallic Chrome Special Order $ 90.15

1 9705296 Gearcase Motor Housing-onyx Black Special Order $ 88.20

1 9705297 Gearcase Motor Housing-navy Blue Appelez-nous -
1 W11681929 Gearcase Motor Housing-almond Cream   (Replaces: 9705298) Appelez-nous -
1 9705299 Gearcase Motor Housing-hunter Green Appelez-nous -
1 9705300 Gearcase Motor Housing-empire Red Special Order $ 88.20

1 9705301 Gearcase Motor Housing-majestic Yellow Appelez-nous -
2 9703572 Motor Appelez-nous -
3 W11123129 Cap, Attachemnt Hub (hinged)   (Replaces: 9703315) Special Order $ 19.69

4 WP9709194 Thumb Screw   (Replaces: 240374) In-Stock Immediately $ 20.14

5 9703640 Trim Band-silver & Gray (model Kd2661xmc) Appelez-nous -
5 9703634 Trim Band-silver & Gray Appelez-nous -
6 9703627 Power Cord (black) Appelez-nous -
6 9703626 Power Cord (white) Appelez-nous -
7 8212396 Transmission Housing   (Replaces: 9703671) In-Stock Immediately $ 62.13

8 9703611 Control Assembly (buff Knob) Appelez-nous -
8 9703610 Control Assembly (grey Knob) Appelez-nous -
8 9703609 Control Assembly (black Knob) Appelez-nous -
9 WP9706648 Sensor, Hall Effect   (Replaces: 9703312) In-Stock Immediately $ 109.97

10 9703437 Washer Appelez-nous -
11 W11084660 Washer, Fiber   (Replaces: 9703434) In-Stock Immediately $ 4.94

12 W11133646 Gear, Pinion   (Replaces: 9703340) In-Stock Immediately $ 8.47

13 WP9703438 Retaining Clip   (Replaces: 9703438) In-Stock Immediately $ 4.60

14 9703314 Agitator Shaft Appelez-nous -
15 WP9708173 Planetary-imperial Gray   (Replaces: 9703542) Special Order $ 73.84

15 WP9708172 Planetary-white   (Replaces: 9703613) In-Stock Immediately $ 73.84

15 WP9708174 Planetary-imperial Black   (Replaces: 9703544) Special Order $ 76.24

15 WP9708175 Planetary-metallic Chrome   (Replaces: 9703430) In-Stock Immediately $ 70.69

15 WP9708176 Planetary-onyx Black   (Replaces: 9705332) In-Stock Immediately $ 73.38

15 9705333 Planetary-navy Blue Appelez-nous -
15 9708178 Planetary-almond Cream   (Replaces: 9705334) Appelez-nous -
15 9705335 Planetary-hunter Green Appelez-nous -
15 WP9708180 Planetary-empire Red   (Replaces: 9705336) In-Stock Immediately $ 71.94

15 9708181 Planetary-majestic Yellow   (Replaces: 9705337) Appelez-nous -
15 9705386 Planetary-cobalt Blue Appelez-nous -
15 9705689 Planetary-caviar Appelez-nous -
16 W11181966 Gear, External   (Replaces: 9703339) Special Order $ 14.82

17 WP9709231 Worm Gear   (Replaces: 9703699) In-Stock Immediately $ 55.55

18 WP9707223 Retaining Pin   (Replaces: 4161950) In-Stock Immediately $ 5.08

19 W11086780 Gear, Worm Follower   (Replaces: 9703543) In-Stock Immediately $ 19.02

20 W11192795 Gear, Attachment Hub Bevel   (Replaces: 9703338) In-Stock Immediately $ 23.38

21 W11192795 Gear, Bevel   (Replaces: 9703337) In-Stock Immediately $ 23.38

22 WP3196170 Screw, 6-32 X 1/4   (Replaces: 3400617) Special Order $ 7.55

23 WP3400814 Screw, 8-32 X 5/8   (Replaces: 3400814) Special Order $ 4.62

24 9705329 Lower Gearcase-hunter Green Appelez-nous -
24 9705330 Lower Gearcase-empire Red Appelez-nous -
24 9706336 Lower Gearcase-majestic Yellow   (Replaces: 9705331) Appelez-nous -
24 9705385 Lower Gearcase-cobalt Blue Appelez-nous -
24 9706346 Lower Gearcase-caviar   (Replaces: 9705686) Appelez-nous -
24 9703553 Lower Gearcase-imperial Gray Appelez-nous -
24 9706301 Lower Gearcase-imperial Black   (Replaces: 9703555) Special Order $ 92.72

24 9703427 Lower Gearcase-metallic Chrome Appelez-nous -
24 9706311 Lower Gearcase-onyx Black   (Replaces: 9705326) Special Order $ 92.72

24 9705327 Lower Gearcase-navy Blue Appelez-nous -
24 9706321 Lower Gearcase-almond Cream   (Replaces: 9705328) Appelez-nous -
24 9703313 Lower Gearcase-white Appelez-nous -
25 WP9703680 Retaining Clip   (Replaces: 9703680) In-Stock Immediately $ 4.99

26 9703630 Jumper Wire Appelez-nous -
27 W10913677 Screw (3) 1/4 - 20 X 3/4   (Replaces: 3400200) Special Order $ 4.64

28 9703351 Bearing, Worm Gear (2) Special Order $ 19.45

29 9703677 Thrust Washer Special Order $ 5.27

30 4164778 Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs Appelez-nous -
30 4164768 Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) Appelez-nous -
30 FVSP Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp)   (Replaces: 4164775) Special Order $ 117.81

30 RVSA Rotor Slicer/shredder (with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin   (Replaces: 4164750) Special Order $ 115.50

30 4164824 Pasta Maker Plates Snpa Appelez-nous -
30 4164774 Fruit/vegetable Strainer And Food Grinder, Fvs/fga Appelez-nous -
30 4162838 Food Tray (ft) Appelez-nous -
30 4164748 Juicer, Je Appelez-nous -
30 4164747 Can Opener, Co Appelez-nous -
30 4164803 Sausage Stuffer, Kit, Ssa Appelez-nous -
30 W11200218 Grease, Planetary   (Replaces: 4160588) In-Stock Immediately $ 86.08

30 9703581 Clip Appelez-nous -
30 4164751 Grain Mill (gm-a) Appelez-nous -
30 4164749 Food Grinder (fg-a) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

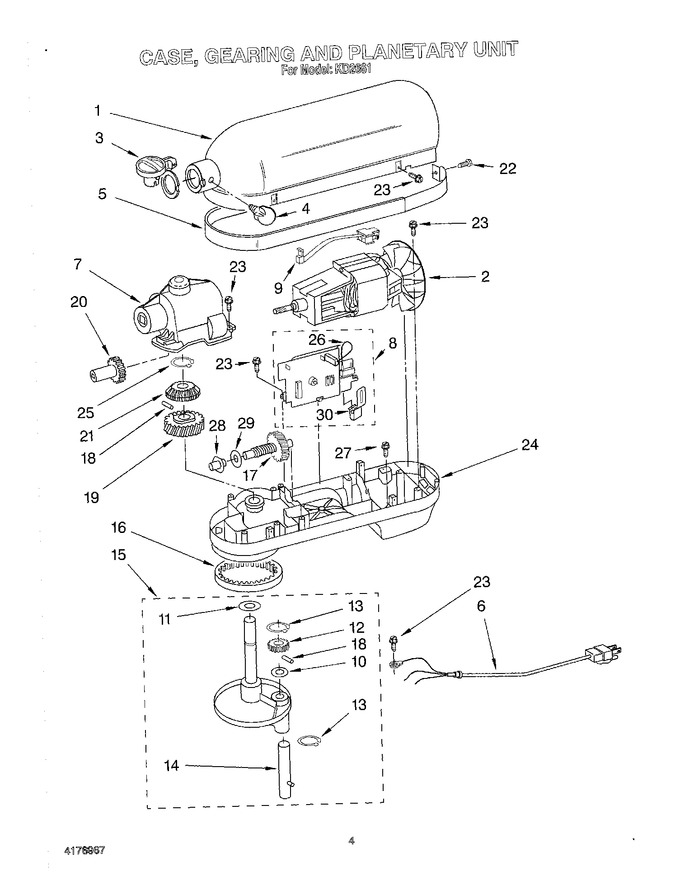

Diagram for KD2661
