Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10225971 Kickplate Special Order $ 106.53

3 WPW10138054 Roller, Assembly   (Replaces: W10138054) Special Order $ 45.34

4 W10269197 Vent, Bottom Upper Appelez-nous -
5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

6 W10859931 Foot   (Replaces: 9760860) Special Order $ 119.11

7 W10249333 Base, Leveling Leg Special Order $ 292.22

8 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

9 WPW10250465 Panel, Side (left)   (Replaces: W10250465) Special Order $ 448.67

9 W11333303 Panel, Side (right)   (Replaces: W10250464) Special Order $ 421.41

10 W10115869 Shaft, Long In-Stock Immediately $ 109.36

11 W10115793 Shaft, Short Special Order $ 75.83

12 489504 E-ring Special Order $ 7.40

13 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 7.55


    View Diagram in Separate Window     Print Icon   Print Part List

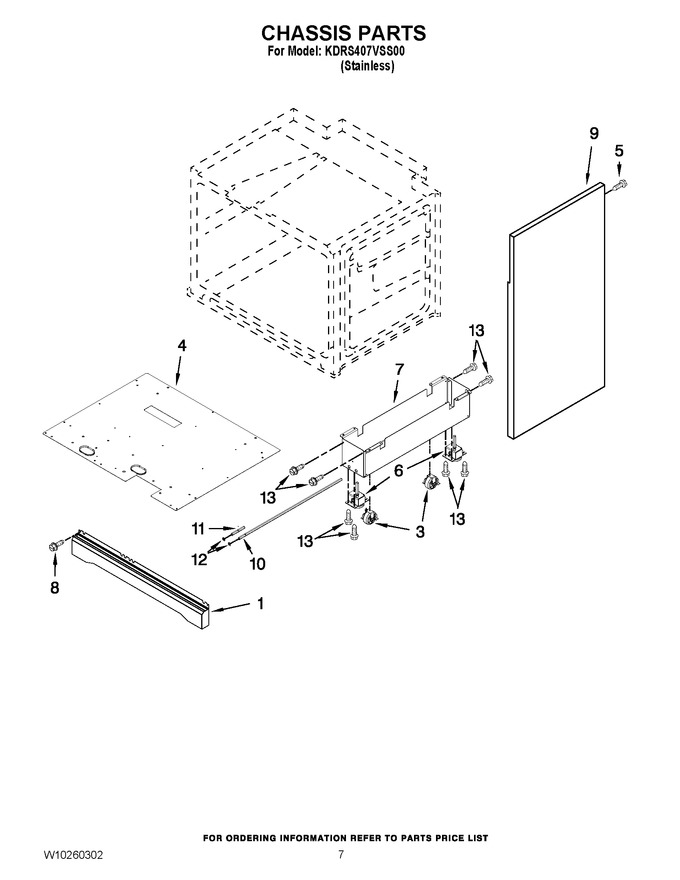

Diagram for KDRS407VSS00
