01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Oven Parts


04 - Chassis Parts


05 - Top Venting Parts

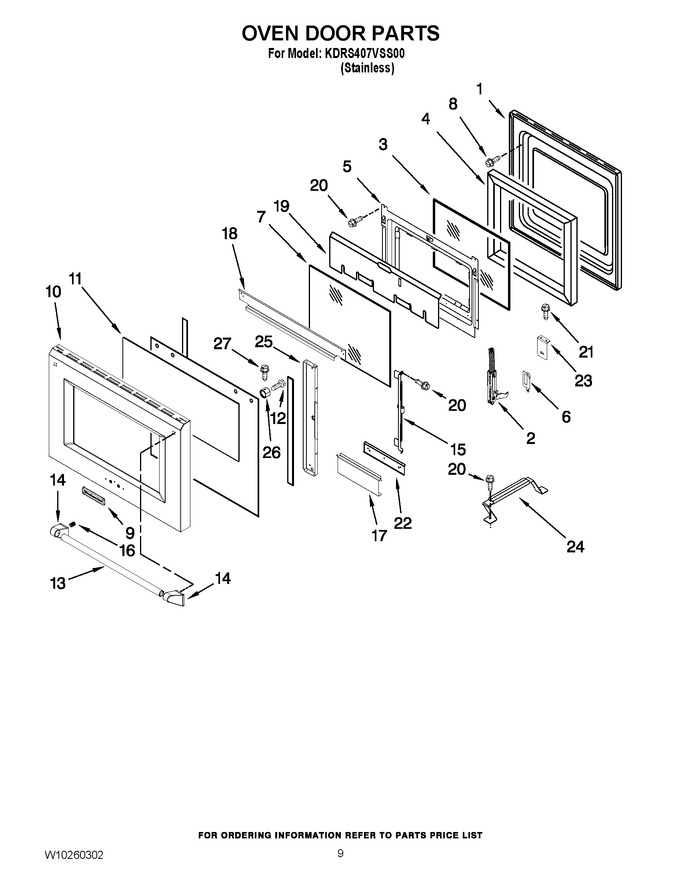

06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 9759413)				$ 370.46
2	W10782122		Hinge, Door (right)   (Replaces: W10269201)				$ 64.68
2	W10782123		Hinge, Door (left)   (Replaces: W10269202)			Immediately	$ 64.68
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
6	W10115877		Cover, Hinge (right)		Appelez-nous	-
6	W10115876		Cover, Hinge (left)		Appelez-nous	-
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
9	W10852683		Nameplate   (Replaces: W10113961)				$ 121.63
10	W10225959		Panel, Door				$ 238.73
11	W10115711		Glass, Outer		Appelez-nous	-
12	W10217130		Screw, End Cap				$ 13.08
13	W10115720		Door Handle				$ 277.01
14	W10226026		Handle, End Caps (left)			Immediately	$ 49.20
14	W10226025		Handle, End Caps (right)				$ 96.58
15	WP9759229		Bracket(2nd Glass)   (Replaces: 9759229)				$ 187.50
16	W10771437		Screw, End Cap   (Replaces: W10212184)				$ 7.46
17	W10145809		Bracket, Bottom		Appelez-nous	-
18	W10145805		Bracket, Top				$ 92.42
19	4457104		Shield, Heat Top				$ 39.22
20	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
21	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
22	4457114		Shield, Heat Bottom				$ 217.79
23	W10115715		Bracket, Door Top		Appelez-nous	-
24	9759230		Bracket(3rd Glass)				$ 36.30
25	W10145811		Bracket, Side		Appelez-nous	-
26	W10225964		Support, Handle				$ 10.41
27	W10061760		Screw				$ 7.62
