SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

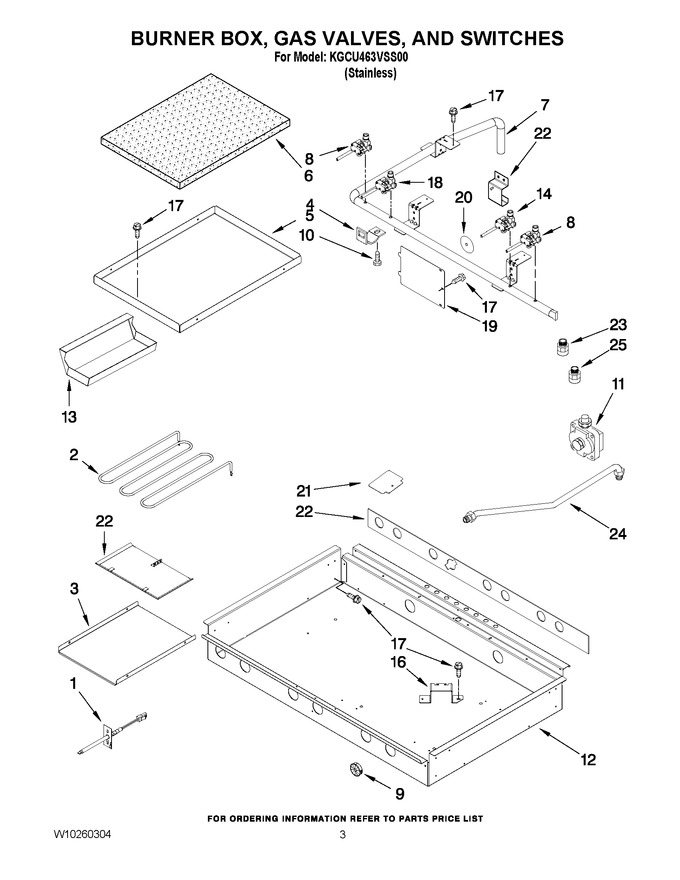

02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
2	W10138296		Element, Griddle		Appelez-nous	-
3	W10145620		Tray-element, Griddle		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10246074		Tray-insulation, Griddle		Appelez-nous	-
6	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
7	W10115985		Manifold		Appelez-nous	-
8	W10250407		Valve, Single (lr & Rf)		Appelez-nous	-
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W10293267		Regulator, Pressure				$ 313.91
12	W10250425		Burner Box		Appelez-nous	-
13	W10276497		Drip Tray, Griddle				$ 404.03
14	WPW10385583		Valve, Simmer   (Replaces: W10284547)			Immediately	$ 332.10
16	W10115929		Bracket, Burner (3)		Appelez-nous	-
16	W10280796		Bracket, Burner (1)		Appelez-nous	-
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
18	WPW10371235		Valve, Gas (lf)   (Replaces: W10250410)			Immediately	$ 268.41
19	W10115843		Cover, Ignition		Appelez-nous	-
20	W10189177		Seal, Switch Cover				$ 10.00
21	W10287036		Cover, Housing		Appelez-nous	-
22	W11688578		Insulation, Burner Box Mounting Orifice   (Replaces: W10145622)		Appelez-nous	-
23	4453116		Adapter, 1/2`` Male				$ 179.43
24	W10269191		Tube, Pressure Regulator				$ 217.69
25	4453115		Adapter, 1/2`` Female				$ 126.70
NI	W10115908		Tubing, Gas (lr & Rr)		Appelez-nous	-
NI	W10280797		Tubing, Gas		Appelez-nous	-
NI	W10115911		Tubing, Gas (lf - Simmer)				$ 188.34
NI	W10115910		Tubing, Gas (lf & Rf)				$ 176.20

    View Diagram in Separate Window       Print Part List
