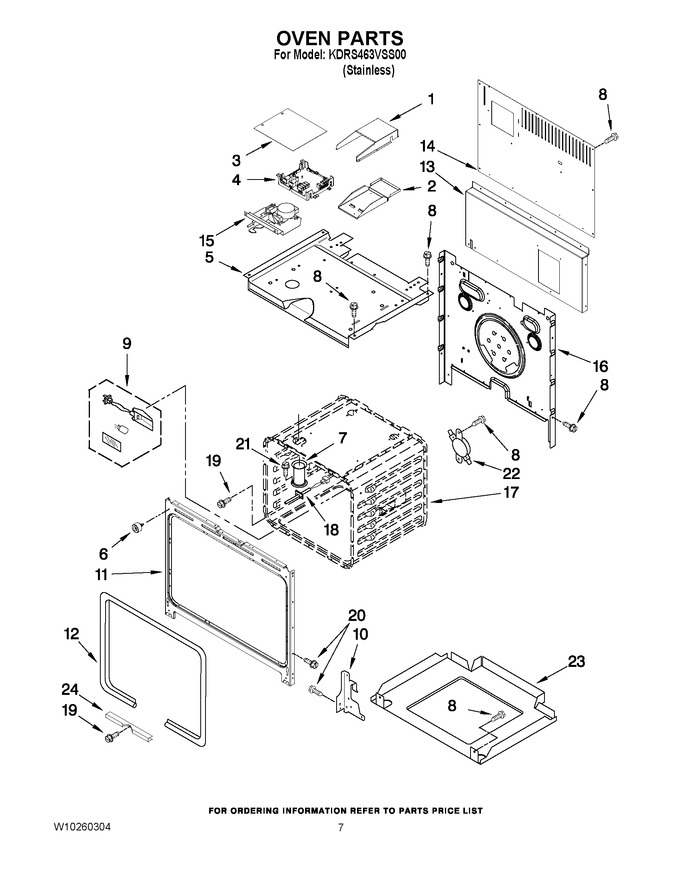

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235557		Drawer, Am		Appelez-nous	-
2	W10249337		Support, Am		Appelez-nous	-
3	W10239444		Seal, Am		Appelez-nous	-
4	WPW10116185		Mgr, Appliance   (Replaces: W10116185)				$ 405.69
5	W10267896		Top, Chassis		Appelez-nous	-
6	W10105790		Assembly, Bumper				$ 7.41
7	W10288061		Tube, Vent				$ 115.94
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WPW10307114		Oven Light Assy   (Replaces: W10009940)			Immediately	$ 116.01
10	WP4455605		Hinge Receiver (left Hand)   (Replaces: 4455605)			Immediately	$ 127.70
10	WP4455606		Hinge Receiver (right Hand)   (Replaces: 4455606)			Immediately	$ 131.74
11	W10160867		Frame, Front				$ 212.10
12	W11676901		Gasket, Oven   (Replaces: W10160889)				$ 75.74
13	W10145398		Panel, Back Bottom		Appelez-nous	-
14	W10269208		Panel, Back Top		Appelez-nous	-
15	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 327.65
16	W10235551		Back, Chassis		Appelez-nous	-
17	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
18	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
19	WP4449154		Screw, 8-32 X .440   (Replaces: 4449154)				$ 8.16
20	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
21	W11233072		Screw, 8-18 X 1/2   (Replaces: 3196176)			Immediately	$ 14.72
22	WP4449751		Thermostat (tod) (temp.) Spst   (Replaces: 4449751)			Immediately	$ 111.84
23	W10235536		Base, Chassis		Appelez-nous	-
24	W11368870		Retainer, Gasket   (Replaces: W10157511)				$ 24.91
NI	W10160807		Insulation, Back		Appelez-nous	-
NI	8300158		Insulation, Wrap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
