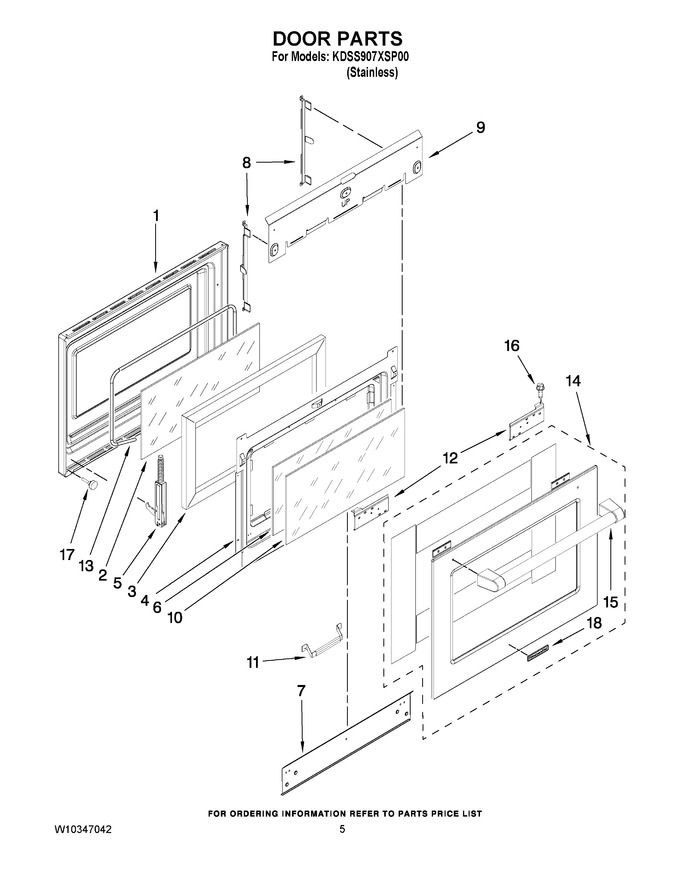

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 370.46
2	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 141.95
3	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
4	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
5	WP9760574		Hinge, Oven Door (left)   (Replaces: 9760580)			Immediately	$ 67.07
5	WP9760579		Hinge, Oven Door (right)   (Replaces: 9760579)			Immediately	$ 71.50
6	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
7	4457114		Shield, Heat Bottom				$ 217.79
8	WP9759229		Bracket, Glass Side   (Replaces: 9759229)				$ 187.50
9	4457104		Shield, Heat Top				$ 39.22
10	WP9759225		Glass, Inner Door   (Replaces: 9759225)			Immediately	$ 194.20
11	9759230		Bracket, Central				$ 36.30
12	W10246114		Bracket, Handle (right)				$ 41.38
12	W10246113		Bracket, Handle (left)				$ 28.40
13	8522415		Seal, Window				$ 75.50
14	W10246115		Door Assembly Outer				$ 440.95
15	W10246102A		Handle, Door   (Replaces: W10246102)		Appelez-nous	-
16	WP3400074		Screw   (Replaces: 3400074)				$ 7.55
17	4448520		Bumper, Door				$ 22.25
18	WPW10320959		Badge   (Replaces: W10320959)				$ 102.43

    View Diagram in Separate Window       Print Part List
