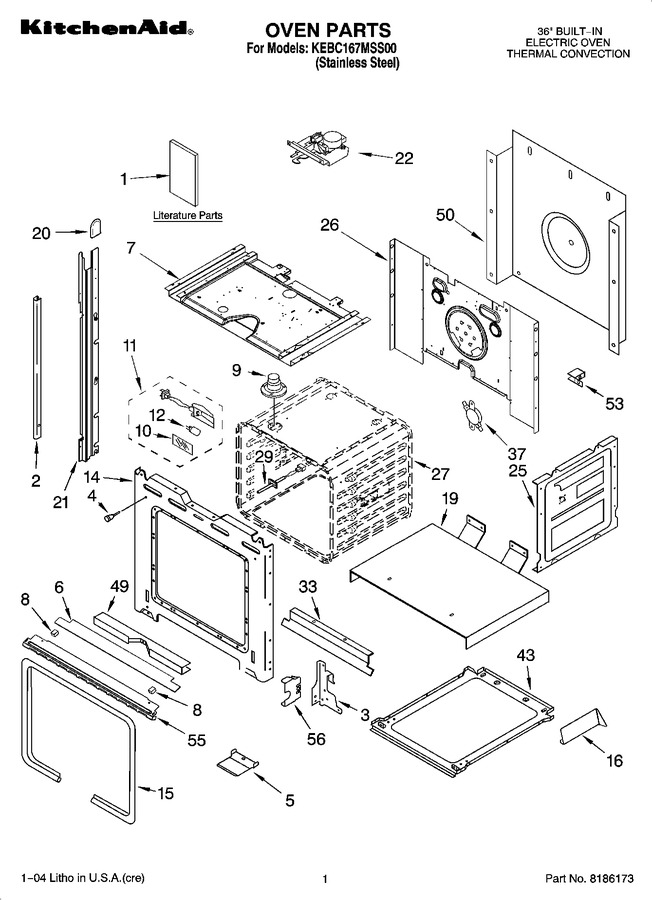

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8301807		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide)		Appelez-nous	-
1	LIT8302333		Literature Parts (installation/ Undercounter)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT8302334		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT8301808		Literature Parts (tech Sheet)		Appelez-nous	-
2	WP694091		Trim, Side (screw)   (Replaces: 694091)				$ 7.55
2	WPW10144983		Trim, Side (right Hand)   (Replaces: 4452079)				$ 164.76
2	W10144984		Trim, Side (left Hand)   (Replaces: 4452080)				$ 148.16
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	4448520		Bumper, Door				$ 22.25
5	W10145009		Deflector, Vent Box   (Replaces: 4452489)				$ 81.61
6	8300154		Insulation		Appelez-nous	-
7	8301784		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
8	4452490		Spacer, Foam				$ 34.83
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	8300150		Frame, Front		Appelez-nous	-
15	W11676901		Gasket, Door   (Replaces: 8300142)				$ 75.74
16	8302338		Bracket, Deflector (r.hand)		Appelez-nous	-
16	WP3400805		Bracket, Deflector (screw (2))   (Replaces: 3400805)				$ 7.55
16	8302339		Bracket, Deflector (l.hand)		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	8300184		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 126.74
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 127.79
22	WPW10195934		Latch, Motorized   (Replaces: 8302474)			Immediately	$ 288.66
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	8302199		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
33	8301780		Deflector, Vent		Appelez-nous	-
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
43	8302327		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Support, Bracket		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
55	8301788		Trim, Bottom		Appelez-nous	-
56	8300159		Insulation, Back		Appelez-nous	-
56	4452152		Bracket, Mounting Bottom Trim				$ 35.18
56	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
56	8300158		Insulation, Wrap		Appelez-nous	-
