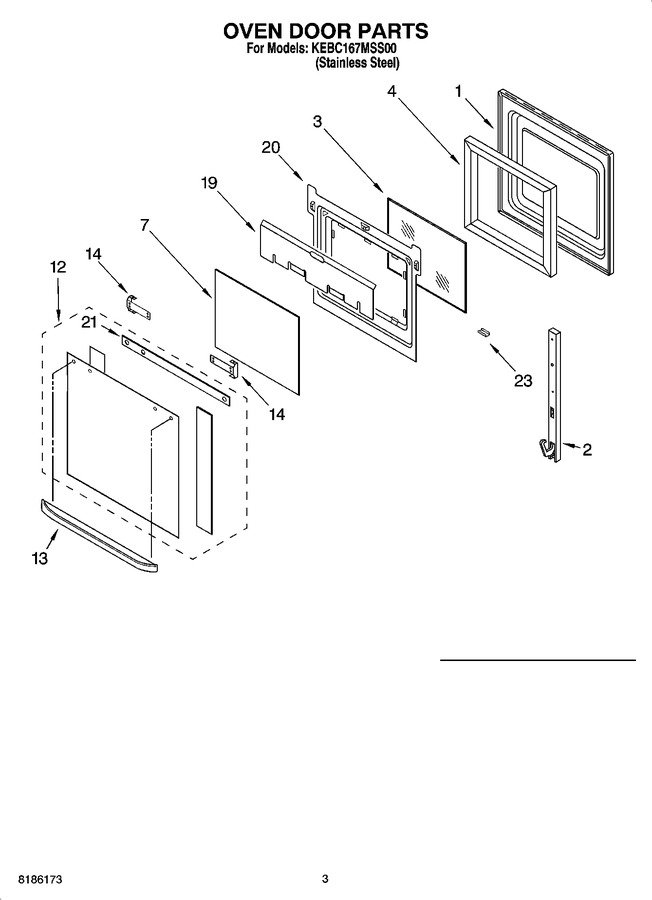

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300152		Door Liner				$ 148.16
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
2	WP9760574		Hinge, Door (l.side (orange))   (Replaces: 8300580)			Immediately	$ 67.07
2	WP9760579		Hinge, Door (r.side (orange))   (Replaces: 8300579)			Immediately	$ 71.50
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	8300797		Insulation, Door				$ 72.37
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	8302468		Door Glass, Assy		Appelez-nous	-
13	4455852		Door Handle		Appelez-nous	-
14	4455803		Bracket, Handle (stainless Steel)				$ 30.70
14	WPW10132940		Bracket, Handle (screw)   (Replaces: 3196184)				$ 10.12
14	4455804		Bracket, Handle (stainless Steel)				$ 25.95
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	8301089		Shield, Heat		Appelez-nous	-
20	8300190		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	8300153		Seal, Door Top		Appelez-nous	-
23	4451432		Retainer, Clip		Appelez-nous	-
