View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven, Literature

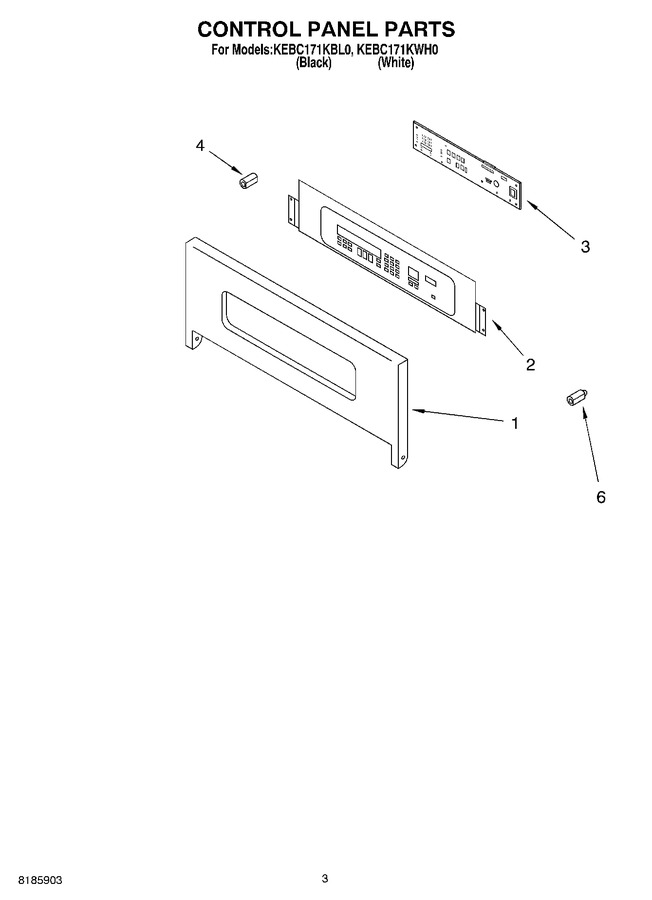

02 - Control Panel
03 - Oven Door
04 - Internal Oven
05 - Top Venting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452602 | Control Panel Assy. (black Model) |
|
- | |||||
| 1 | 4452603 | Control Panel Assy. (white Model) |
|
- | |||||
| 1 | WP3400832 | Control Panel Assy. (screw) (Replaces: 8281179) |
|
Immediately | $ 8.18 | ||||
| 2 | 8300865 | Switch, Membrane |
|
- | |||||
| 3 | 4453163 | Microcomputer |
|
- | |||||
| 3 | 3400406 | Screw |
|
- | |||||
| 4 | 4452249 | Insulation, Board Support |
|
- | |||||
| 6 | 4452248 | Insulation, Board |
|
- |
