SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel

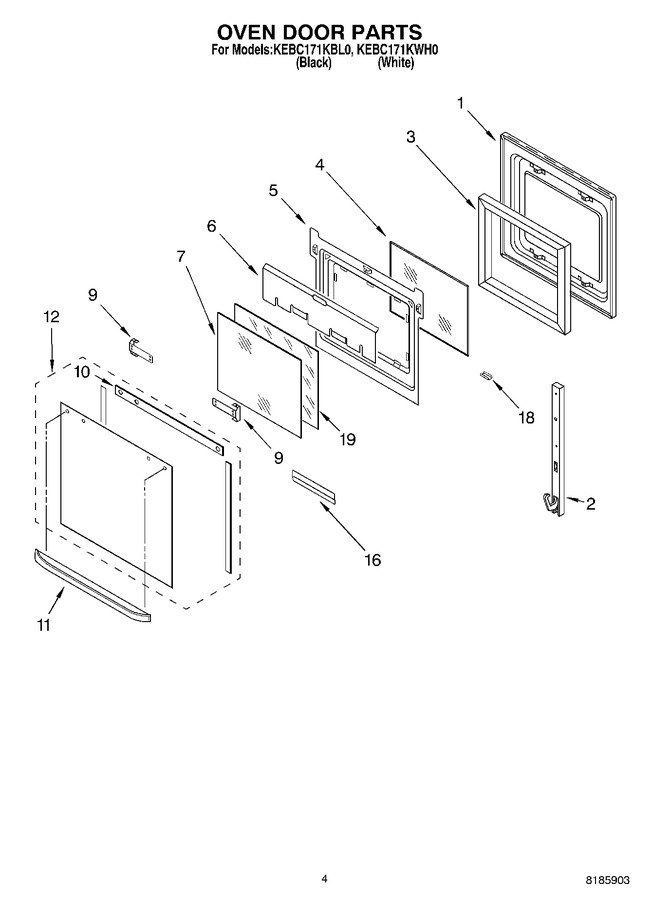

03 - Oven Door


04 - Internal Oven


05 - Top Venting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455617		Door Liner		Appelez-nous	-
2	WP9760571		Hinge, Door (r.side)   (Replaces: 8300571)			Immediately	$ 114.51
2	WP9760572		Hinge, Door (l.side)   (Replaces: 8300572)				$ 111.96
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
3	4451721		Insulation, Sides				$ 37.62
4	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
5	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
5	8300777		Retainer, Glass		Appelez-nous	-
6	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
6	4450361		Shield, Heat		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 208.31
9	4452960		Bracket, Handle (l.hand)		Appelez-nous	-
9	4452959		Bracket, Handle (r.hand)		Appelez-nous	-
9	WP4449743		Bracket, Handle (screw)   (Replaces: 4449743)				$ 7.55
9	W10276642		Bracket, Handle (screw)   (Replaces: 4451040)				$ 6.41
10	4452325		Seal, Top				$ 32.70
11	4452500		Handle (black Model)		Appelez-nous	-
11	4452501		Handle (white Model)		Appelez-nous	-
12	4455392		Glass, Outer (white Model)		Appelez-nous	-
12	4455393		Glass, Outer (black Model)		Appelez-nous	-
16	4451668		Retainer, Glass		Appelez-nous	-
16	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
18	4450863		Clip, Retainer (black Model)		Appelez-nous	-
18	WP4449743		Clip, Retainer (screw)   (Replaces: 4449743)				$ 7.55
18	4450864		Clip, Retainer (white Model)		Appelez-nous	-
19	4455256		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
