SELECT A DIAGRAM

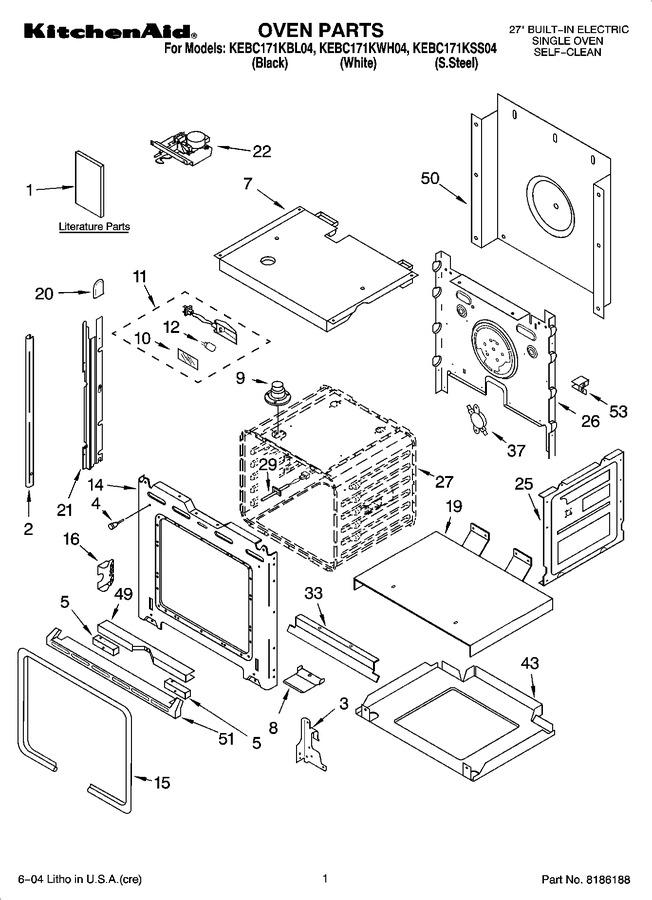

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8302333		Installation/ Undercounter		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	8300655		Installation Instructions		Appelez-nous	-
1	8300887		Use & Care Guide		Appelez-nous	-
1	8301928		Installation, Mwo Trim Kit		Appelez-nous	-
1	8302067		Tech Sheet		Appelez-nous	-
1	4449264		Easy Set Guide		Appelez-nous	-
2	4455377		Trim, Side Right (black)				$ 232.13
2	WPW10144983		Trim, Side (rh S.steel)   (Replaces: 4452079)				$ 164.76
2	4455376		Trim, Side Left (black)		Appelez-nous	-
2	4455429		Trim, Side (lh White)		Appelez-nous	-
2	W10144984		Trim, Side (lh S.steel Screw)   (Replaces: 4452080)				$ 148.16
2	WP8281236		Trim, Side (black)   (Replaces: 8281236)				$ 8.16
2	4449041		Trim, Side (white)				$ 5.27
2	4455428		Trim, Side (rh White)				$ 104.48
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
5	4452490		Spacer, Foam				$ 34.83
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455864		Top, Chassis				$ 22.85
8	4455807		Deflector, Vent Box		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
11	4449748		Screw				$ 14.23
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4455611		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
16	4452152		Bracket, Mounting				$ 35.18
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 127.79
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 126.74
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
22	WPW10195934		Latch, Motorized   (Replaces: 8302474)			Immediately	$ 288.66
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452233		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
33	4452495		Deflector, Vent		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 9759242)			Immediately	$ 85.57
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4455146		Trim, Bottom (s.steel)		Appelez-nous	-
51	4455442		Trim, Bottom (black)		Appelez-nous	-
51	4455444		Trim, Bottom (white)		Appelez-nous	-
51	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 8.18
53	4449845		Support, Bracket		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
53	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
