SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

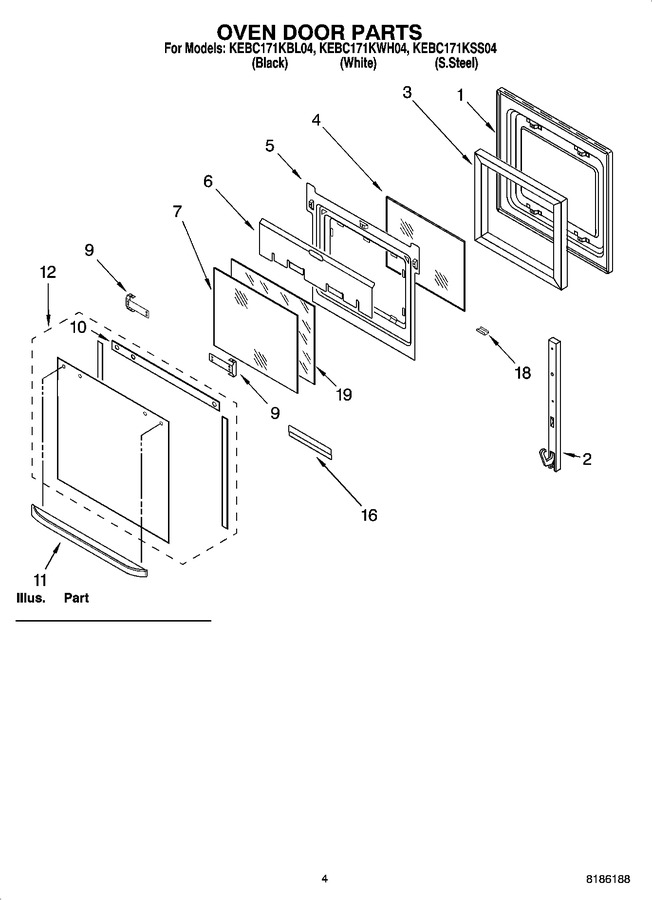

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455617		Door Liner		Appelez-nous	-
2	WP9760575		Hinge, Door (r.side (clear))   (Replaces: 8300575)			Immediately	$ 64.57
2	WP9760576		Hinge, Door (l.side (clear))   (Replaces: 8300576)			Immediately	$ 56.46
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
2	WP9760572		Hinge, Door (l.side (clear))   (Replaces: 8300572)				$ 111.96
2	WP9760571		Hinge, Door (r.side (clear))   (Replaces: 8300571)			Immediately	$ 114.51
3	4451721		Insulation, Sides				$ 37.62
4	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
5	8300777		Retainer, Glass		Appelez-nous	-
5	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
6	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
6	4450361		Shield, Heat		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 208.31
9	4455804		Bracket, Handle (l.hand)				$ 25.95
9	4455803		Bracket, Handle (r.hand)				$ 30.70
9	WP4449743		Bracket, Handle (screw)   (Replaces: 4449743)				$ 7.55
9	WPW10132940		Bracket, Handle (screw)   (Replaces: 3196184)				$ 10.12
10	4452325		Seal, Top				$ 32.70
11	4452500		Handle (black)		Appelez-nous	-
11	4455850		Handle (s.steel)		Appelez-nous	-
11	4452501		Handle (white)		Appelez-nous	-
12	4455392		Glass, Outer (white)		Appelez-nous	-
12	4455393		Glass, Outer (black)		Appelez-nous	-
12	4452315		Glass, Outer (s.steel)				$ 274.20
16	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
16	4450470		Retainer, Glass		Appelez-nous	-
18	WP4449743		Clip, Retainer (screw)   (Replaces: 4449743)				$ 7.55
18	4450864		Clip, Retainer (white)		Appelez-nous	-
18	4450863		Clip, Retainer (black)		Appelez-nous	-
19	8300973		Glass. Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
