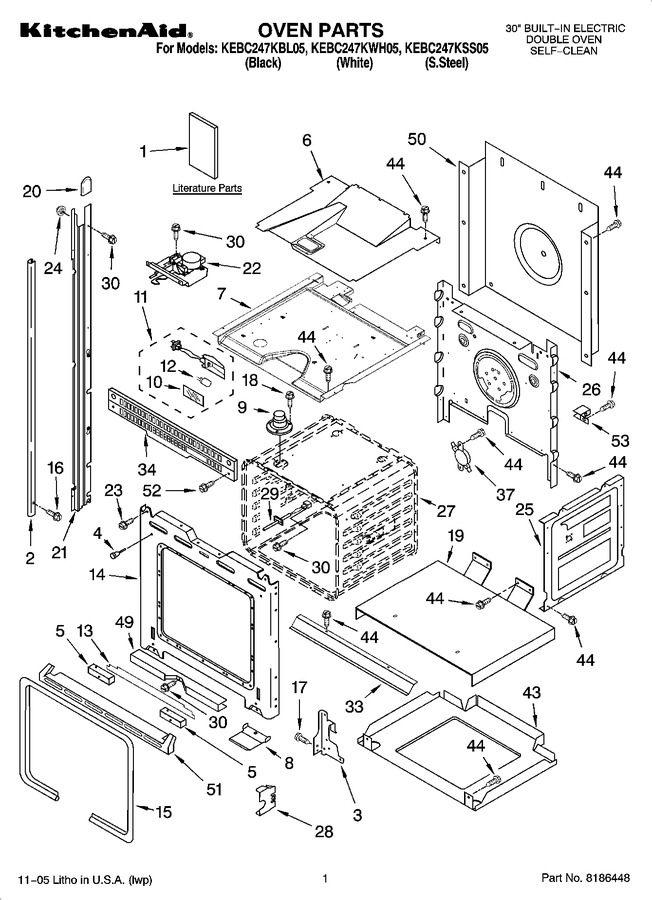

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	8300656		Installation Instructions		Appelez-nous	-
1	8302066		Tech Sheet		Appelez-nous	-
1	8304062		Owners Manual		Appelez-nous	-
1	4449264		Easy Set Guide		Appelez-nous	-
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	4457288		Install Instrctn (bottom Trim)		Appelez-nous	-
2	4455426		Trim, Side (rh Black)		Appelez-nous	-
2	4455375		Trim, Side Right (white)				$ 79.35
2	4452081		Trim, Side (rh S.steel)		Appelez-nous	-
2	4455427		Trim, Side (lh Black)				$ 93.75
2	4455374		Trim, Side Left (white)				$ 77.53
2	4452082		Trim, Side (lh S.steel)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
5	4452490		Spacer, Foam				$ 34.83
6	8302347		Divider, Vent		Appelez-nous	-
7	4455863		Top Chassis				$ 117.60
8	4455807		Deflector, Vent Box		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	8300825		Insulation, Bottom Vent		Appelez-nous	-
14	9760754		Frame, Front   (Replaces: 4455610)				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	WP8281236		Screw   (Replaces: 8281236)				$ 8.16
17	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
18	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814373		Rail, Side (right Side)   (Replaces: 4450581)				$ 237.85
21	814374		Rail, Side (left Side)   (Replaces: 4450582)				$ 238.23
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
24	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452232		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
28	4452152		Brckt, Mounting				$ 35.18
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
33	9760675		Deflector, Vent				$ 76.62
34	W10358914		Vent, Center   (Replaces: 4452265)		Appelez-nous	-
37	WP9759242		Thermostat (tod)   (Replaces: 9759242)			Immediately	$ 85.57
43	4450525		Base, Chassis		Appelez-nous	-
44	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4456811		Trim, Bottom (black)		Appelez-nous	-
51	8302587		Trim, Bottom (s.steel)		Appelez-nous	-
51	4456812		Trim, Bottom (white)		Appelez-nous	-
52	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
53	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
53	4449845		Support, Bracket		Appelez-nous	-
53	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
53	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
