SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

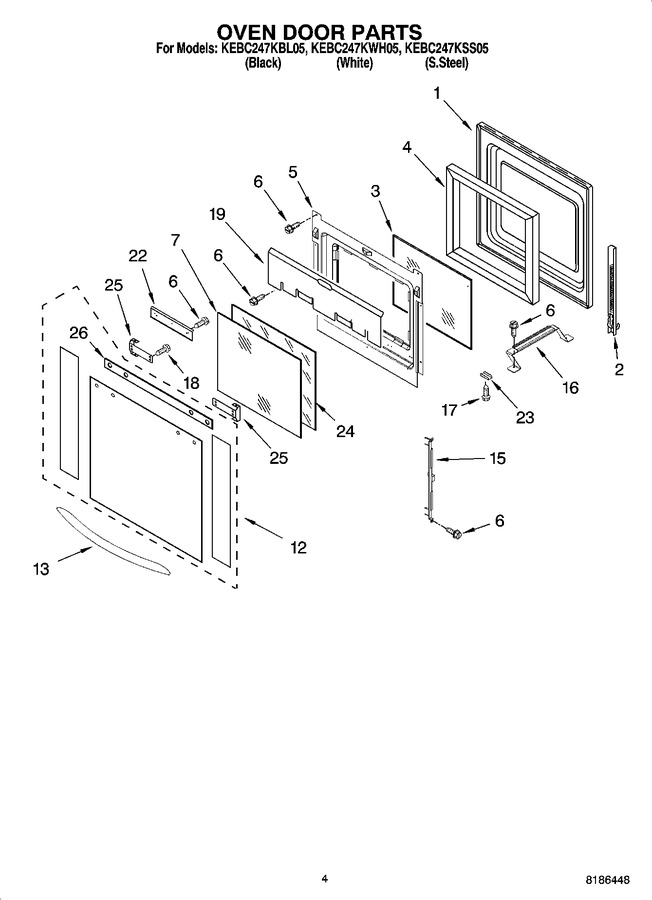

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Door Liner   (Replaces: 8303698)				$ 351.88
2	9760570		Hinge, Door (l.side (green) (below Hinges Are Used On S.steel Models Only))				$ 117.73
2	WP9760571		Hinge, Door (r.side (white))   (Replaces: 9760571)			Immediately	$ 114.51
2	9760569		Hinge, Door (r.side (green))				$ 118.42
2	WP9760572		Hinge, Door (l.side (white))   (Replaces: 9760572)				$ 111.96
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 26.92
5	4457130		Retainer, Glass		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP9759223		Glass, Inner   (Replaces: 9759223)				$ 198.29
12	8300836		Door Glass, Assy (black Model)				$ 112.97
12	8302467		Door Glass, Assy (s.steel Model)		Appelez-nous	-
12	8300837		Door Glass, Assy (white Model)				$ 109.32
13	4452499		Door Handle (white)		Appelez-nous	-
13	4452498		Door Handle (black)		Appelez-nous	-
13	8301255		Door Handle (s.steel)		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
17	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
18	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
19	4457101		Shield, Heat		Appelez-nous	-
22	4457112		Shield, Heat (bottom)		Appelez-nous	-
23	4451432		Retainer, Clip (stainless Steel)		Appelez-nous	-
23	4450863		Retainer, Clip (black)		Appelez-nous	-
23	4450864		Retainer, Clip (white)		Appelez-nous	-
24	WP9759226		Glass, Inner   (Replaces: 9759226)				$ 186.64
25	4455803		Bracket, Handle (right Hand)				$ 30.70
25	4455804		Bracket, Handle (left Hand)				$ 25.95
26	8300853		Seal, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
