SELECT A DIAGRAM

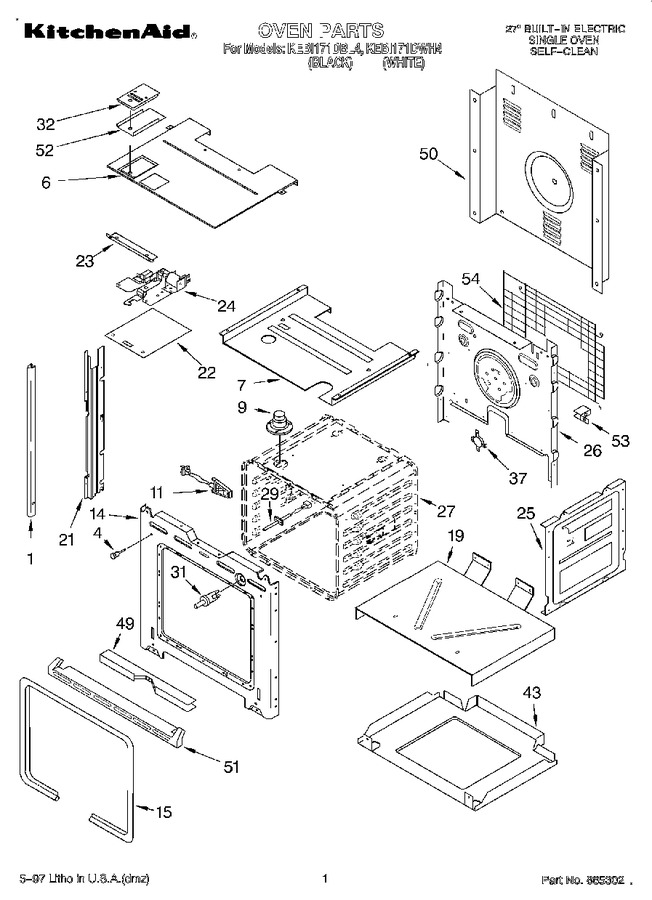

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450844		Trim, Side (rh Black)		Appelez-nous	-
1	4450847		Trim, Side (lh Black)		Appelez-nous	-
1	4450845		Trim, Side (white, Right)		Appelez-nous	-
1	4450848		Trim, Side (lh White)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
1	4449041		Trim, Side (screw White)				$ 5.27
4	4448520		Bumper, Door				$ 22.25
6	4451038		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4451165		Partition		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
9	4449009		Tube, Vent		Appelez-nous	-
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	4450416		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4449371)				$ 185.61
19	4450541		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
22	4450289		Screw		Appelez-nous	-
22	4451036		Shield, Latch		Appelez-nous	-
23	4450051		Deflector, Latch		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	4454710		Latch Assy		Appelez-nous	-
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4451168		Back, Chassis		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	4450026		Sensor		Appelez-nous	-
31	4450819		Switch, Door		Appelez-nous	-
32	4449369		Vent Box Assy		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP4450934		Thermostat (tod) (temp.) Spst   (Replaces: 4450934)				$ 228.01
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4450526		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	4450544		Cover, Back		Appelez-nous	-
51	4450289		Trim, Bottom (screw)		Appelez-nous	-
51	4448459		Trim, Bottom (white Model)		Appelez-nous	-
51	4448458		Trim, Bottom (black Model)		Appelez-nous	-
52	4450795		Vent Extension		Appelez-nous	-
52	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Bracket-support		Appelez-nous	-
54	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
54	4450364		Insulation, Back		Appelez-nous	-
54	4451002		Spacer, Harness		Appelez-nous	-
54	4449315		Insulation, Wrap				$ 64.81
