01 - Oven
02 - Control Panel, Literature
03 - Oven Door
04 - Internal Oven

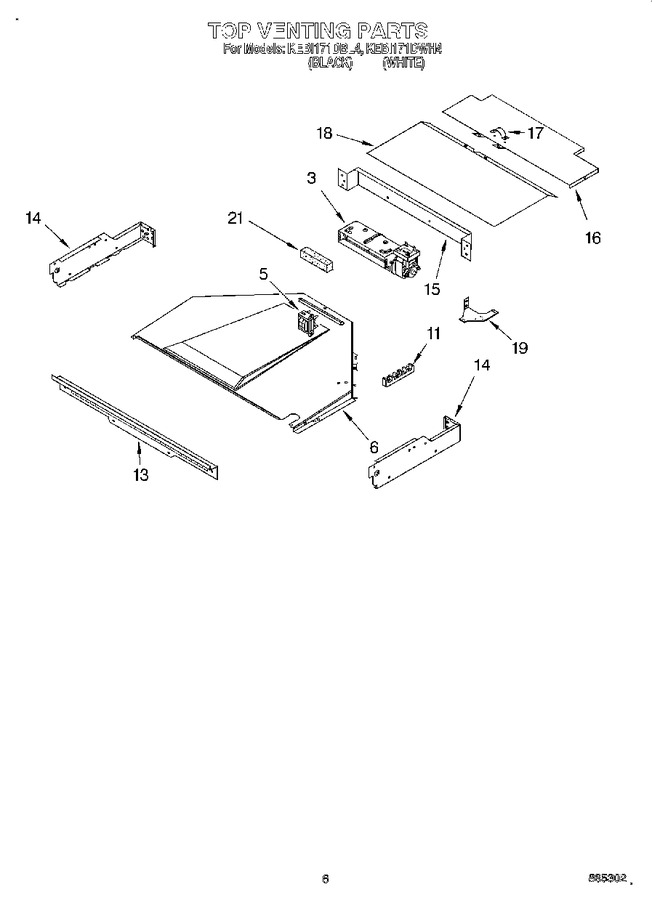

05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4450920 | Blower |
|
- | |||||
| 5 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 5 | WP9760588 | Transformer, Light (Replaces: 4450328) |
|
$ 276.58 | |||||
| 6 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 6 | 4450366 | Exhaust Duct |
|
- | |||||
| 11 | WP3387230 | Screw (Replaces: 3196181) |
|
Immediately | $ 8.54 | ||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 30.13 | ||||
| 13 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 13 | 4448551 | Vent, (control Panel) |
|
- | |||||
| 14 | WP4449809 | Side, Control Top (screw) (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4448372) |
|
$ 78.41 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4448371) |
|
- | |||||
| 15 | 4450658 | Back, Control |
|
- | |||||
| 15 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 16 | 4450550 | Cover, Top Rear |
|
$ 32.95 | |||||
| 16 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 17 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 17 | 4448664 | Clamp |
|
$ 21.41 | |||||
| 18 | 4450553 | Cover, Top Front |
|
- | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 19 | 4450545 | Bracket, Blower |
|
- | |||||
| 19 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 21 | WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 8.16 | |||||
| 21 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 21 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 21 | 4450800 | Screw, Ground |
|
$ 13.47 | |||||
| 21 | 4454855 | Harness, Wire (main) (also Order Door Switch Harness) |
|
- | |||||
| 21 | 814381 | Pin Hinge Kit |
|
$ 11.28 | |||||
| 21 | 814387 | Roll Tape, Exhaust Duct |
|
- | |||||
| 21 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 21 | 3182384 | Seal, Foam |
|
- | |||||
| 21 | WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 27.83 | |||||
| 21 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 21 | 261900 | Citrine White |
|
$ 59.89 | |||||
| 21 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 59.89 | |||||
| 21 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 21 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | ||||
| 21 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 21 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 21 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 21 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 21 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 21 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 21 | 242829 | Wire (12 Ga. 150 C Red) |
|
- | |||||
| 21 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 21 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 21 | 242826 | Wire (14 Ga. 150 C White) |
|
- | |||||
| 21 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 21 | 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | |||||
| 21 | 4454871 | Harness, Wire (door Switch) (also, Order Main Harness) |
|
- | |||||
| 21 | WP488366 | Clamp (Replaces: 488366) |
|
$ 11.92 | |||||
| 21 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 21 | 4454709 | Harness, Wire (latch) |
|
- | |||||
| 21 | WP4450952 | Conduit (Replaces: 4450952) |
|
$ 240.98 | |||||
| 21 | 4448664 | Clamp |
|
$ 21.41 | |||||
| 21 | WP112432 | Nut (Replaces: 112432) |
|
$ 8.63 |
