SELECT A DIAGRAM

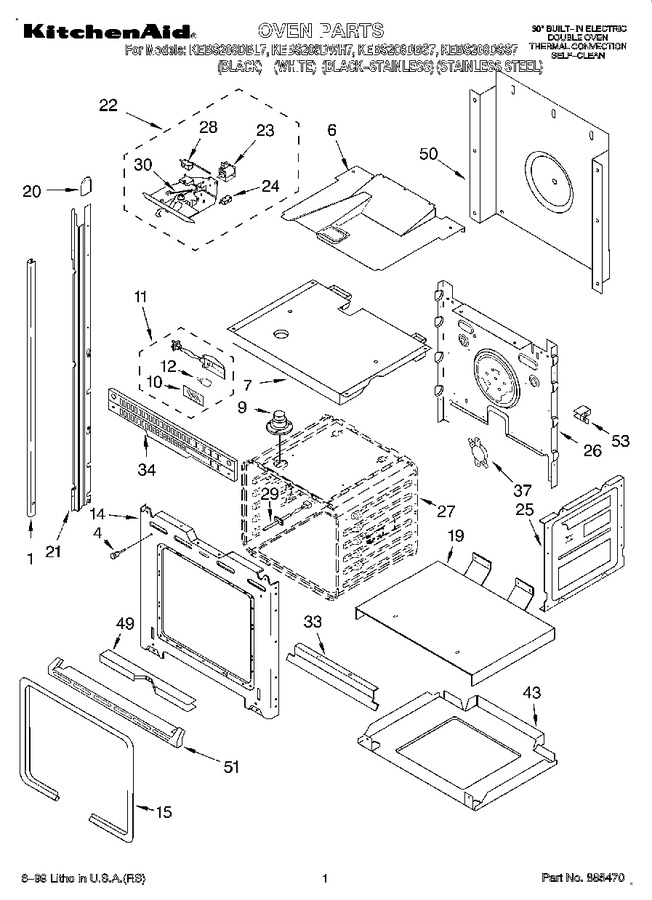

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
1	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
1	4450853		Trim, Side (lh Black & Bs Mdls)		Appelez-nous	-
1	4450850		Trim, Side (rh Black & Bs Mdls)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black & Bs Models)   (Replaces: 4449747)				$ 8.16
1	4449041		Trim, Side (screw) (white Model)				$ 5.27
4	4448520		Bumper, Door				$ 22.25
6	4452201		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4452237		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
11	4449748		Screw				$ 14.23
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451740		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
15	W11675844		Gasket, Door   (Replaces: 4449372)			Immediately	$ 74.56
19	4451478		Support, Insulation				$ 54.10
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 237.85
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 238.23
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
22	4451896		Latch Assembly				$ 163.41
22	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
23	4452224		Solenoid		Appelez-nous	-
24	4451422		Micro Switch N.c.		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
28	4451426		Microswitch		Appelez-nous	-
29	4451665		Sensor				$ 107.99
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4451537		Spring, Latch		Appelez-nous	-
33	4451619		Deflector, Vent		Appelez-nous	-
34	4452267		Vent, Center				$ 67.43
37	WP9759242		Thermostat (tod)   (Replaces: 4452223)			Immediately	$ 85.57
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4451398		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448478		Trim, Bottom (white Model)		Appelez-nous	-
51	4448477		Trim, Bottom (black & Bs Models)				$ 71.44
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4450365		Insulation, Back				$ 70.95
53	4449845		Bracket-support		Appelez-nous	-
53	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85

    View Diagram in Separate Window       Print Part List
