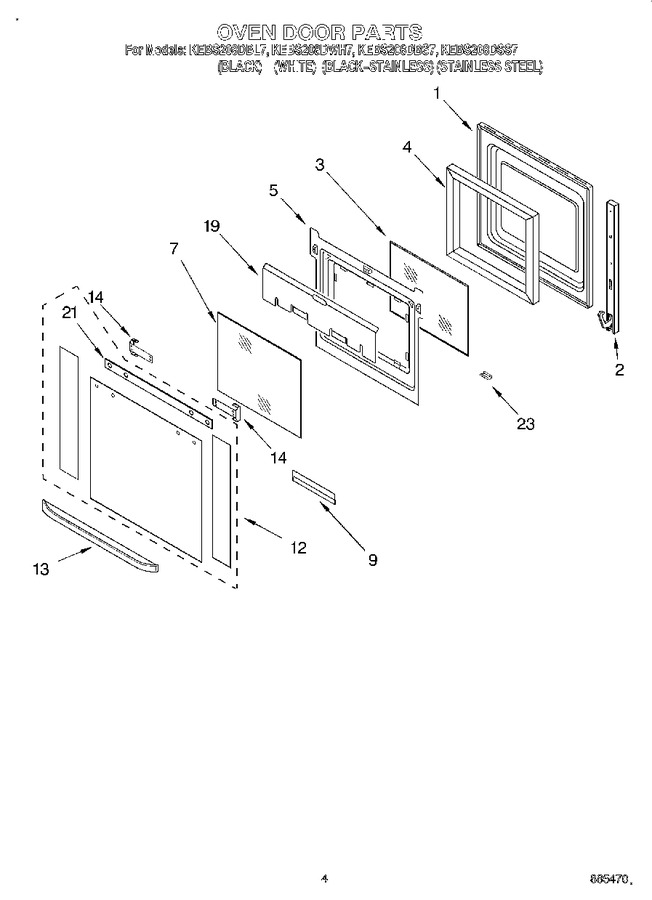

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4455524		Hinge, Door   (Replaces: 4454947)			Immediately	$ 78.20
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	4451671		Retainer, Glass		Appelez-nous	-
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	4451668		Retainer, Glass		Appelez-nous	-
12	4452075		Door Glass, Assy (white Model)		Appelez-nous	-
12	4452074		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452078		Door Glass, Assy (black-stainless)		Appelez-nous	-
12	W10401225		Door Glass, Assy (stainless Steel)   (Replaces: 4452316)				$ 321.60
13	4448414		Door Handle (black & Bs Models)		Appelez-nous	-
13	4448415		Handle, Door (white Model)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	4451674		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black & Bs Models)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
