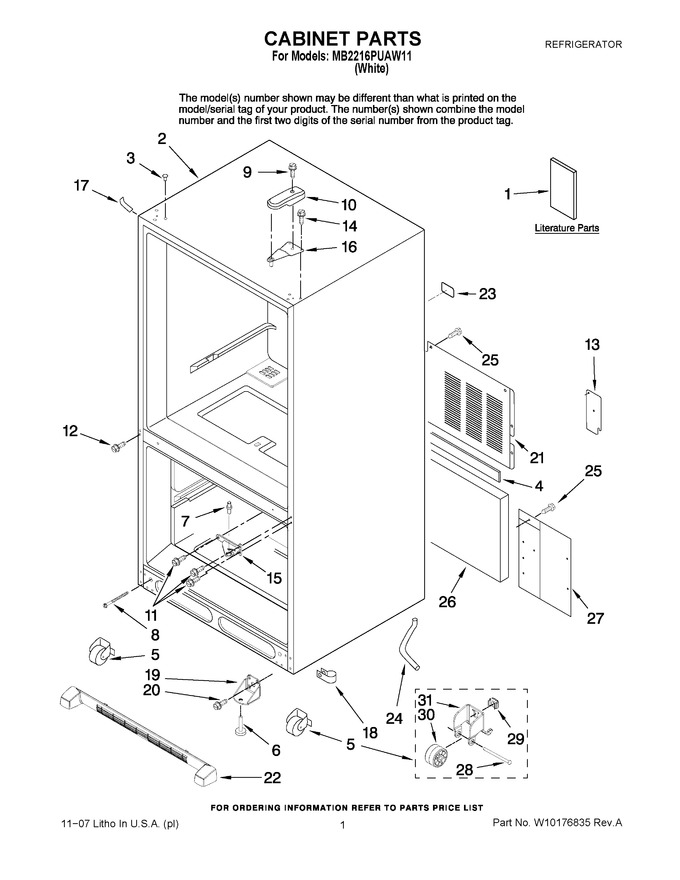

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10123817 | Energy Guide |
|
- | |||||
| 1 | W10165418 | Tech Sheet |
|
- | |||||
| 1 | W10137641 | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) White (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 67006118 | Roller Assy. (2) |
|
- | |||||
| 6 | W11177593 | Foot Brake (Replaces: 67003868) |
|
$ 12.18 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) |
|
$ 8.78 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 67006611) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | 67001014 | Cover Hinge (white) |
|
$ 22.34 | |||||
| 11 | WP489349 | Screw (Replaces: 67005822) |
|
Immediately | $ 8.43 | ||||
| 12 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 13 | 12479901 | Plate, Cover |
|
- | |||||
| 14 | WP489349 | Screw (3) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 67006960) |
|
$ 69.79 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 17 | 67003484 | Cover, Corner (white) |
|
$ 21.42 | |||||
| 18 | 67001067 | Clip, Drain |
|
$ 9.66 | |||||
| 19 | 12906303WD | Bracket, Foot (2) (Replaces: 67007174) |
|
$ 88.58 | |||||
| 20 | 67006564 | Screw (4) |
|
Immediately | $ 8.15 | ||||
| 21 | 67006101 | Cover, Unit |
|
$ 76.68 | |||||
| 22 | WPW10534161 | Grille, Toe (white) (Replaces: 67007004) |
|
$ 147.09 | |||||
| 23 | W11685757 | Label, Fill Tube (Replaces: 67005064) |
|
$ 7.41 | |||||
| 24 | 67001066 | Tube, Drain |
|
$ 55.82 | |||||
| 25 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 26 | 67003796 | Fiber, Acoustic |
|
$ 19.27 | |||||
| 27 | 67001097 | Cover, Water Valve |
|
- | |||||
| 28 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 29 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 30 | WP10450603 | Roller (Replaces: 67005127) |
|
$ 8.27 | |||||
| 31 | 12456801V | Bracket, Roller (Replaces: 12456801) |
|
$ 53.10 |
