Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67004363 Door, Refrigerator (white) Appelez-nous -
2 67006668 Screw (4) (white) Special Order $ 12.83

3 WP67003637 Door, Dairy   (Replaces: 67003637) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 67004040 Bucket, Medium (4) Special Order $ 95.99

6 12991103 Screw (4) (white) Special Order $ 12.03

7 10712401 Plug, Button (2) (white) Special Order $ 7.79

8 W10443313 Gasket, Door (white)   (Replaces: W10130893) Special Order $ 361.01

9 WP12781004W Handle, Door (white)   (Replaces: 67006119) Special Order $ 183.57

10 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

11 12968202W Stop, Door (white)   (Replaces: 67003779) Special Order $ 69.29

12 66981-5 Bezel, Nameplate Appelez-nous -
13 67001748 Retainer, Ref Door Appelez-nous -
14 WP67004977 Bushing (4) (white)   (Replaces: 67004977) Special Order $ 8.20

15 WP67003638 Closure, Door (white)   (Replaces: 67003638) In-Stock Immediately $ 8.15

16 67215-2 Tray, Egg Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

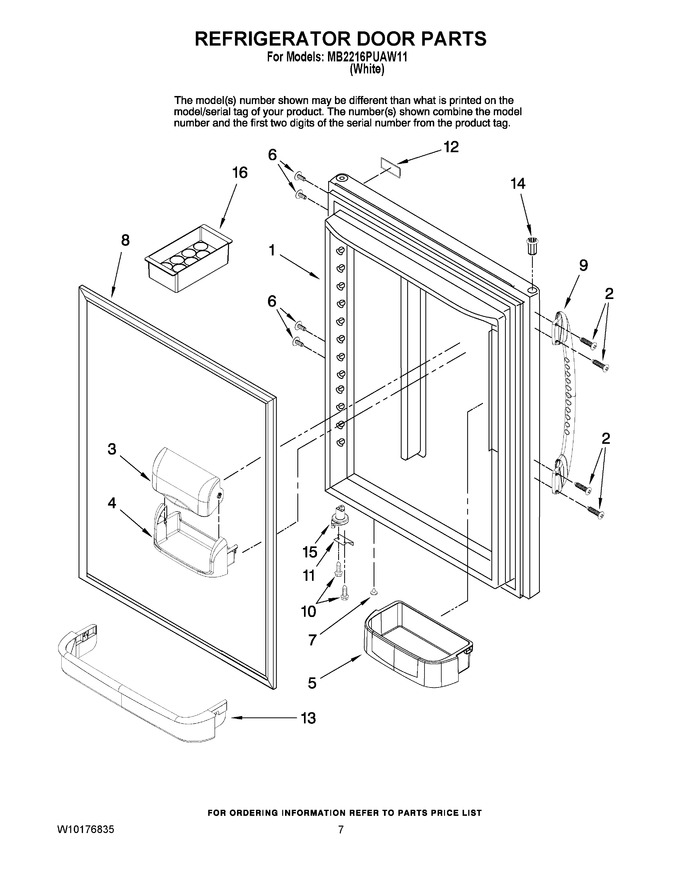

Diagram for MB2216PUAW11
