SELECT A DIAGRAM
New Model Search:

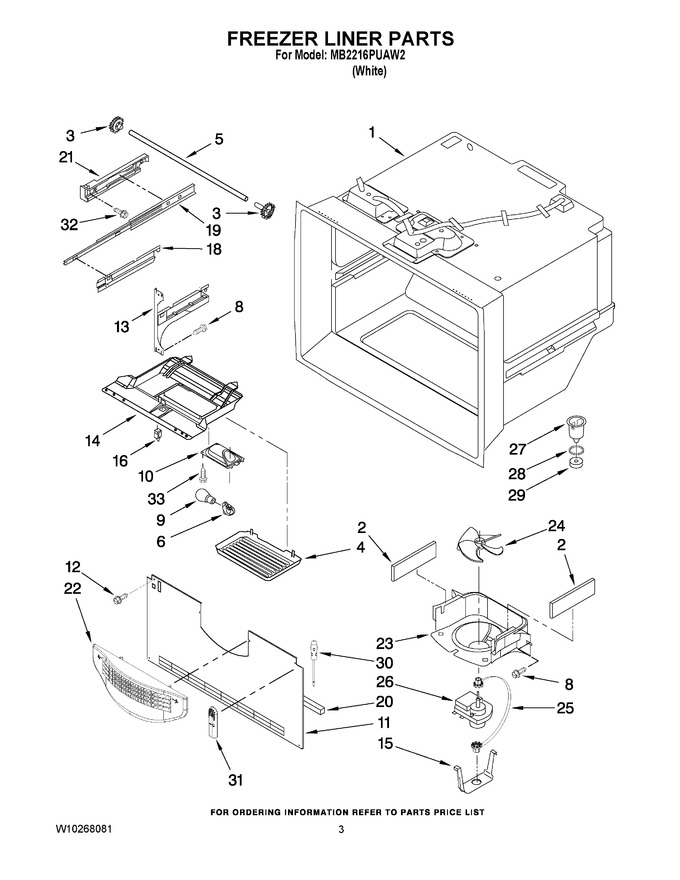

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (2) (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | 12002497 | Gear (2) (includes Rh & Lh) |
|
Immediately | $ 22.51 | ||||
| 4 | 12804901 | Cover, Light |
|
- | |||||
| 5 | W11715937 | Shaft (Replaces: 12812902WD) |
|
$ 65.42 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 8 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 8.00 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Frz. Light (Replaces: 12476401V) |
|
$ 85.82 | |||||
| 11 | W10308415 | Cover, Evaporator (Replaces: 12226111) |
|
$ 285.46 | |||||
| 12 | WP489349 | Screw (7) (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 13 | WPW10330993 | Bracket-door (right) (Replaces: W10122148) |
|
$ 158.18 | |||||
| 13 | WPW10330991 | Bracket-door (left) (Replaces: W10122147) |
|
$ 156.49 | |||||
| 14 | 12805001 | Housing, Lighting |
|
- | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 18 | WPW10280613 | Bracket, Basket (right) (Replaces: 12812304) |
|
$ 87.76 | |||||
| 18 | WPW10280608 | Bracket, Basket (left) (Replaces: 12812303) |
|
$ 87.76 | |||||
| 19 | W11658402 | Slide-drawer (2) (Replaces: W10120018) |
|
Immediately | $ 127.51 | ||||
| 20 | W11159742 | Gasket, Bottom (Replaces: A3189395) |
|
$ 27.03 | |||||
| 21 | W10128119 | Adapter, Slide (right) |
|
- | |||||
| 21 | W10128118 | Adapter, Slide (left) |
|
- | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Fan, Evaporator (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet (2) |
|
$ 48.38 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Funnel, Drain (incl. No. 28 & 29) (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 30 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 32 | WP489474 | Screw (6) (Replaces: 12990501) |
|
Immediately | $ 7.97 | ||||
| 33 | WP90767 | Screw (Replaces: 12991603V) |
|
Immediately | $ 7.82 | ||||
| NI | 13014801 | Harness, Lights (freezer) |
|
- |
