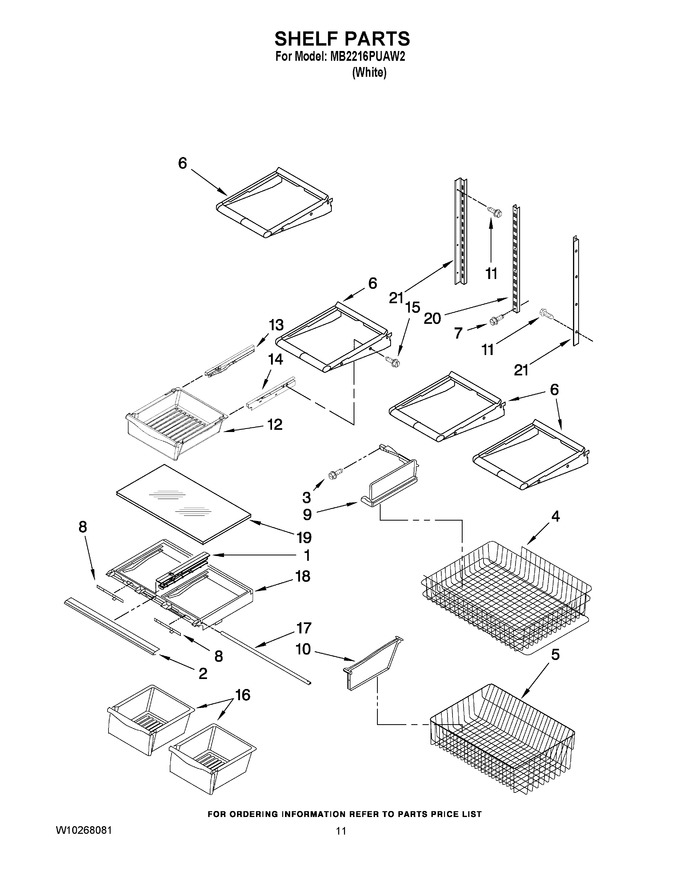

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 112.82
2	WPW10231343		Trim, Crisper   (Replaces: W10231343)			Immediately	$ 99.65
3	12990601N		Screw		Appelez-nous	-
4	12896402		Basket, Freezer Upper		Appelez-nous	-
5	W10143561		Basket, Freezer (lower)		Appelez-nous	-
6	12463506		Shelf (4)		Appelez-nous	-
7	W10709795		Screw   (Replaces: 12990515)				$ 13.13
8	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 7.81
9	12693802N		Divider, Basket (upper)		Appelez-nous	-
10	12659608		Divider, Basket Lower		Appelez-nous	-
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
12	WP67001314		Pan, Deli   (Replaces: 12656404SP)				$ 155.33
13	WP67001054		Glide-left   (Replaces: 12656601SP)			Immediately	$ 8.40
14	WP67001053		Glide-right   (Replaces: 12656602SP)			Immediately	$ 9.24
15	W11233072		Screw, Glide (4)   (Replaces: 12990302SP)			Immediately	$ 14.02
16	WP67002633		Pan, Crisper   (Replaces: 12530505)			Immediately	$ 149.12
17	WP12227303WD		Brace, Crisper   (Replaces: 12227303WD)				$ 105.95
18	WPW10568041		Frame, Crisper   (Replaces: 12530401SP)			Immediately	$ 137.23
19	WP67006878		Glass, Crisper Cover   (Replaces: 12204822)			Immediately	$ 185.19
20	67001073		Ladder, Center   (Replaces: 12435807)				$ 54.18
21	12710602		Ladder, Side		Appelez-nous	-
