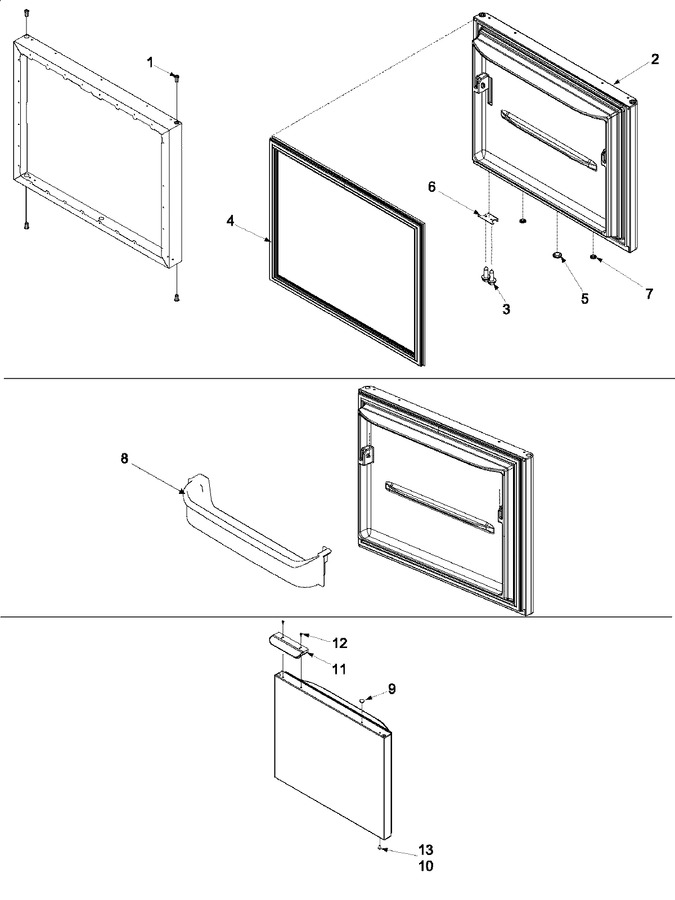

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67004977		Bushing, Door (wht)   (Replaces: 67003368)	10			$ 7.81
2	67001146		Fz Dr Foam Assy (bsq)	10	Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)	10		Immediately	$ 7.76
4	WPW10443311		Gasket, Fz Door (wht)   (Replaces: 67003550)	10		Immediately	$ 255.76
5	A3080002		Plug, Button (wht)	10	Appelez-nous	-
6	67003781		Stop, Door (bsq)   (Replaces: 10447110)	10			$ 79.16
7	67001015		Plug, Button (wht)	10	Appelez-nous	-
8	67003397		Retainer, Frz Door	10			$ 104.39
9	12246604		Plug, Handle Hole (bsq)	10	Appelez-nous	-
10	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)	10		Immediately	$ 8.00
11	WP67005141		Handle, Fz Dr (bsq)   (Replaces: 12610802C)	10			$ 146.21
12	WPW10348409		Screw, Mounting   (Replaces: M0211533)	10		Immediately	$ 7.76
13	67007018		Pin, Hinge (btm)   (Replaces: 10200801)	10		Immediately	$ 8.21
