01 - Cabinet Back


02 - Compressor (series 10)


03 - Compressor (series 11)


04 - Controls


05 - Evaporator Area & Rollers


06 - Freezer Door


07 - Interior Cabinet & Freezer Shelving


08 - Optional Ice Maker Kit-ic11b


09 - Refrigerator Door


10 - Refrigerator Shelving


11 - Supplemental Information


12 - Wiring Information (series 10)


13 - Wiring Information (series 11)


14 - Wiring Information (series 13)

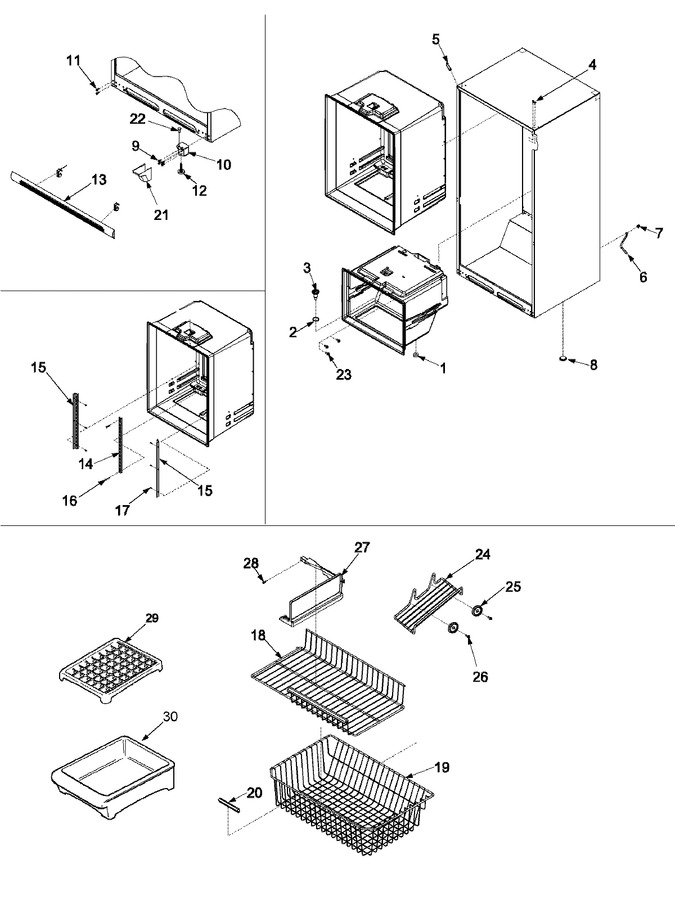

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)	10			$ 7.41
2	WPM0500703		Seal, O Ring   (Replaces: M0500703)	10			$ 10.92
3	W10815413		Funnel, Drain   (Replaces: D7753903)	10		Immediately	$ 49.05
4	A4539607		Pop Rivet	10	Appelez-nous	-
5	67003486		Cover, Corner (bsq)	10	Appelez-nous	-
6	67001066		Tube, Drain	10			$ 55.82
7	67001067		Clip, Drain Tube	10			$ 9.20
8	A3076901		Plug-button	10			$ 5.70
9	67003858		Screw, Bottom Hinge	10	Appelez-nous	-
10	67001069		Hinge, Bottom E-ct (wht)	10	Appelez-nous	-
11	WP67006715		Screw   (Replaces: M0233847)	10			$ 7.19
12	W11177593		Brake, Foot   (Replaces: 10354001)	10			$ 11.60
13	12627302		Clip, Toe Grille	10			$ 5.84
13	67002285		Toe Grille Assy (bsq)	10	Appelez-nous	-
14	67001073		Ladder, Center	10			$ 54.18
15	67001302		Ladder, Sides	10	Appelez-nous	-
16	W10709795		Screw   (Replaces: M0231425)	10			$ 13.13
17	67006425		Screw, Sm   (Replaces: M0238642)	10		Immediately	$ 6.95
18	67003470		Shelf, Glide 30``	10	Appelez-nous	-
19	WP12754803		Basket, Lower 30`` X   (Replaces: 67003329)	10			$ 254.30
20	10508506		Handle, Basket/shelf	10	Appelez-nous	-
21	12561901C		Cover, Lwr Hinge (bsq)	10	Appelez-nous	-
22	M0310343		Plug, Button (wht)	10			$ 10.67
23	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.95
24	67002419		Rack, Ice Tray	10	Appelez-nous	-
25	10972101		Spacer, Ice Rack	10			$ 7.82
26	WP67006908		Screw   (Replaces: M0230919)	10		Immediately	$ 7.95
27	67001723		Divider, Basket (upper)	10	Appelez-nous	-
28	67001310		Screw	10	Appelez-nous	-
29	WP61002140		Tray, Ice   (Replaces: 61002140)	10			$ 20.26
30	61002267		Pan, Ice	10	Appelez-nous	-
