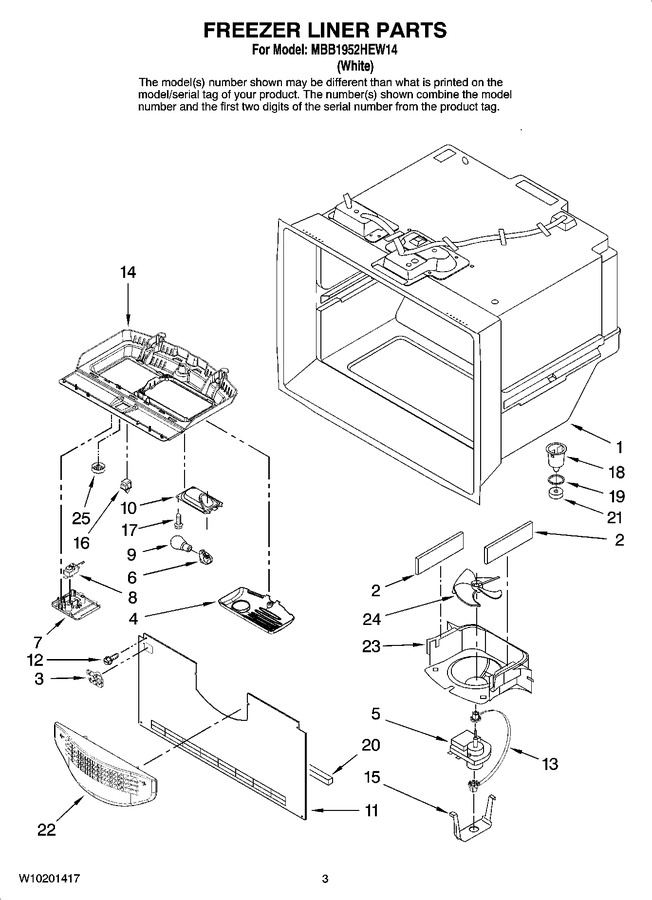

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: 67001291) |
|
Immediately | $ 7.68 | ||||
| 3 | W11448709 | Guide, Fill Tube (Replaces: 67005874) |
|
$ 24.64 | |||||
| 4 | 67001285 | Cover, Light |
|
$ 26.46 | |||||
| 5 | WPW10128551 | Motor, Evaporator (Replaces: 67003636) |
|
Immediately | $ 78.75 | ||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.21 | ||||
| 7 | 67001045 | Panel Control |
|
$ 6.47 | |||||
| 8 | WP67003000 | Control,fz Temp. (Replaces: 67001046) |
|
Immediately | $ 184.98 | ||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 85.82 | |||||
| 11 | 67005868 | Cover, Evaporator |
|
- | |||||
| 12 | 67006425 | Screw |
|
Immediately | $ 6.95 | ||||
| 13 | W10121318 | Grommet |
|
$ 48.38 | |||||
| 14 | 67001286 | Module, Freezer Control |
|
- | |||||
| 15 | 13058002 | Clip, Evap. Motor (Replaces: W10167028) |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 37.30 | ||||
| 17 | 67006530 | Screw |
|
- | |||||
| 18 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 20 | A3189394 | Gasket, Bottom (Replaces: 67002286) |
|
$ 27.37 | |||||
| 21 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: 13024802) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: W10167023) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | 67003420 | Knob, Fz Control |
|
$ 55.42 | |||||
| NI | W10130480 | Harness, Lights (freezer) |
|
- |
