Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 67002083 Module, Light Appelez-nous -
3 67001040 Belt, Damper Special Order $ 35.28

4 67001034 Tensioner, Belt Special Order $ 9.72

5 WP67001036 Timer, Defrost   (Replaces: 67001036) In-Stock Immediately $ 150.57

6 W11384469 Switch, Light   (Replaces: C3680310) In-Stock Immediately $ 39.09

7 67002512 Knob, Front Special Order $ 35.96

8 W11702858 Housing, Light   (Replaces: 67001035) Special Order $ 90.11

9 W11679940 Bulb, Light (2)   (Replaces: A0282812) In-Stock Immediately $ 11.30

10 W11447232 Socket, Light (2)   (Replaces: Y12570701) In-Stock Immediately $ 13.87

11 67002301 Cover, Light Appelez-nous -
12 12990514 Screw Appelez-nous -
13 67003878 Cover, Damper Appelez-nous -
14 67003803 Insulation Appelez-nous -
15 67003410 Damper/gear Assembly Special Order $ 107.16

16 67001033 Knob, Gear Special Order $ 18.96

17 M0310343 Plug Button White Special Order $ 11.20

18 67001038 Gasket, Damper Appelez-nous -
19 67002085 Pan, Timer/light Housing Special Order $ 46.49

NI 67001043 Harness, Controls (refrigerator) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

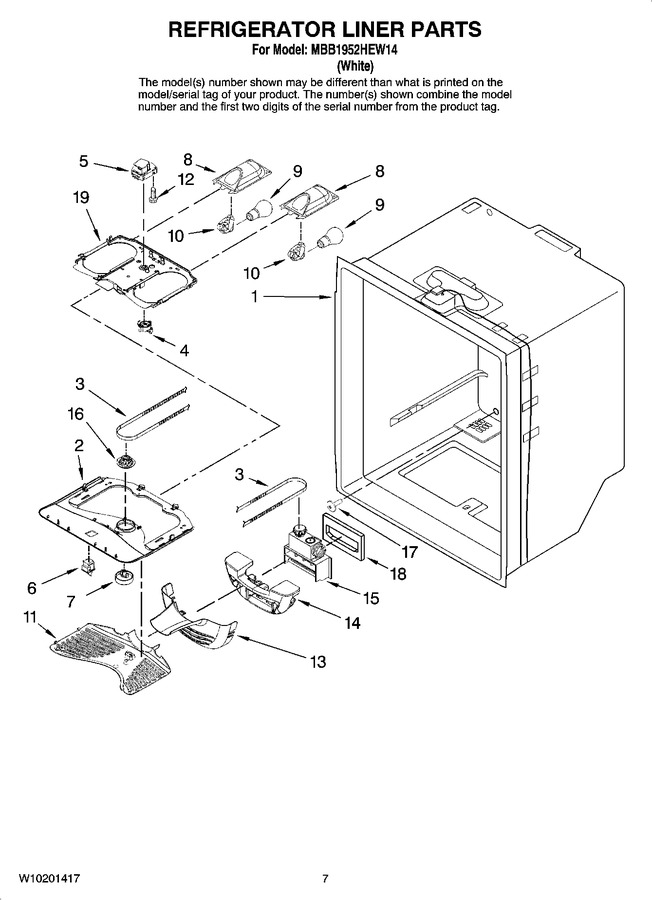

Diagram for MBB1952HEW14
