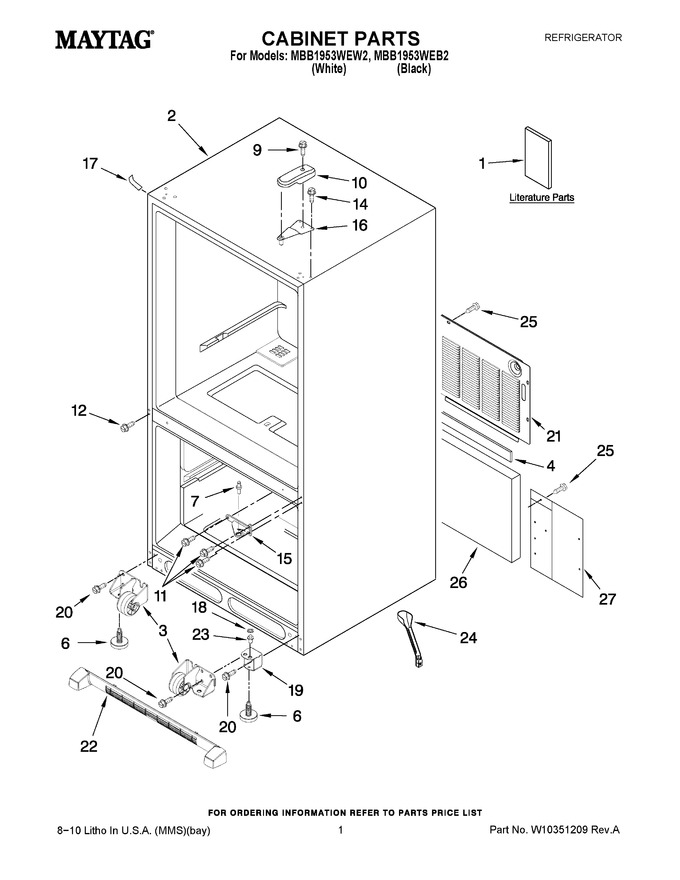

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208789 | Use & Care Guide |
|
- | |||||
| 1 | W10322959 | Tech Sheet |
|
- | |||||
| 1 | W10245040 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11820444 | Assembly, Roller (left) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 3 | W11820445 | Assembly, Roller (right) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 6 | WPW10141622 | Foot, Brake (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 8.27 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 67001014 | Cover-hinge (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 10 | 67001012 | Cover-hinge (black) (Replaces: 12477601B) |
|
$ 47.34 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 18 | WPM0274062 | Shim (black) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 18 | WPM0274057 | Shim (white) (Replaces: M0274057) |
|
Immediately | $ 8.00 | ||||
| 19 | W10315062 | Bottom, Hinge (white) |
|
$ 40.47 | |||||
| 19 | W10325141 | Bottom, Hinge (black) |
|
$ 62.90 | |||||
| 19 | 12580304 | Bottom, Hinge |
|
$ 5.84 | |||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | W10210978 | Cover, Unit |
|
$ 192.17 | |||||
| 22 | WPW10534166 | Grille, Toe (wihite) (Replaces: W10236649) |
|
Immediately | $ 76.61 | ||||
| 22 | WPW10534167 | Grille, Toe (black) (Replaces: W10236650) |
|
$ 91.42 | |||||
| 22 | 67007018 | Pin, Bottom Hinge (Replaces: 10200802) |
|
Immediately | $ 8.21 | ||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210987) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 |
