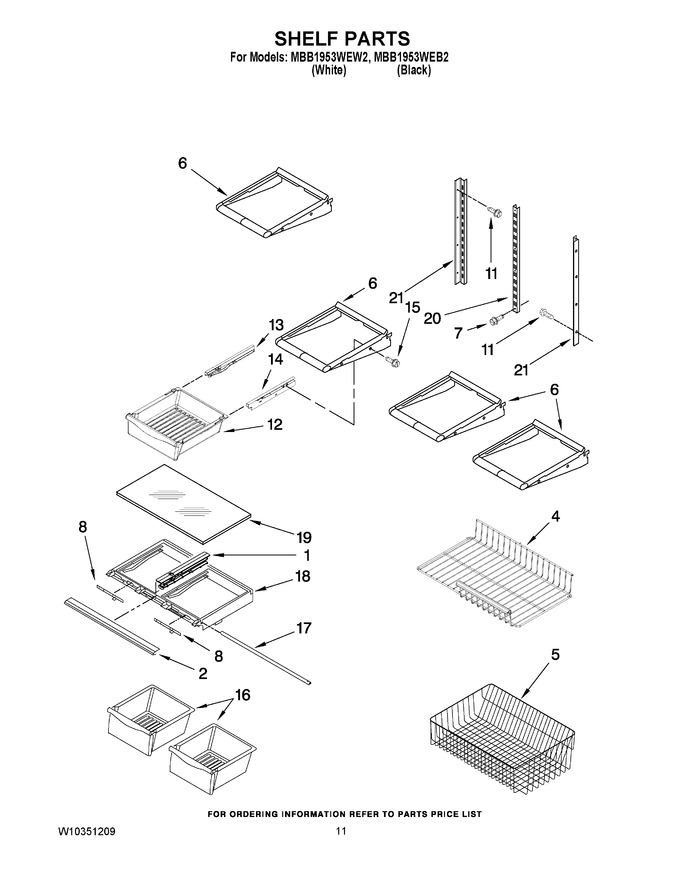

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701) |
|
Immediately | $ 118.46 | ||||
| 2 | W10231339 | Trim, Crisper |
|
$ 63.41 | |||||
| 4 | 12476801 | Shelf, Stationary |
|
$ 136.27 | |||||
| 5 | WP12754803 | Basket, Freezer (lower) (Replaces: 12754803) |
|
$ 267.02 | |||||
| 6 | W11402522 | Shelf (4) (Replaces: 12463608) |
|
$ 203.51 | |||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.79 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | WP67001308 | Pan, Deli (Replaces: 12656504SP) |
|
Immediately | $ 138.10 | ||||
| 13 | WP67001054 | Glide-left (Replaces: 12656601SP) |
|
Immediately | $ 8.82 | ||||
| 14 | WP67001053 | Glide-right (Replaces: 12656602SP) |
|
Immediately | $ 9.24 | ||||
| 15 | W11233072 | Screw, Glide (4) (Replaces: 12990302SP) |
|
Immediately | $ 14.72 | ||||
| 16 | W10833528 | Pan, Crisper (Replaces: 12531305SP) |
|
Immediately | $ 139.95 | ||||
| 17 | WP12227302WD | Brace, Crisper (Replaces: 12227302WD) |
|
$ 111.60 | |||||
| 18 | WPW10671240 | Frame, Crisper (Replaces: 12530901SP) |
|
Immediately | $ 138.10 | ||||
| 19 | WP67006877 | Glass, Crisper Cover (Replaces: 12204823) |
|
Immediately | $ 209.75 | ||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251970 | Ladder, Side |
|
$ 29.89 |
