SELECT A DIAGRAM

01 - Cabinet Parts

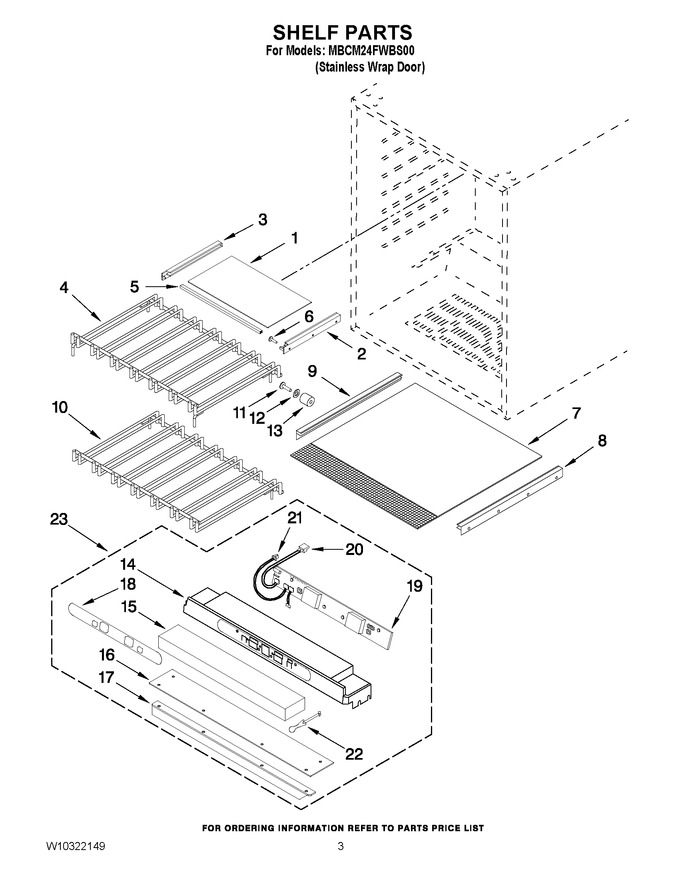

02 - Shelf Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10322058		Glass Shelf-upper		Appelez-nous	-
2	W10322054		Shelf Support Rh		Appelez-nous	-
3	W10322053		Shelf Support Lh		Appelez-nous	-
4	W10322055		Wine Rack-upper		Appelez-nous	-
5	W10322057		Trim, Front		Appelez-nous	-
6	W10319184		Screw		Appelez-nous	-
7	WPW10322059		Glass Shelf-lower   (Replaces: W10322059)				$ 244.68
8	W10322052		Shelf Support Rh				$ 39.17
9	W10322051		Shelf Support Lh		Appelez-nous	-
10	W10322056		Wine Rack-lower		Appelez-nous	-
11	W10322069		Screw		Appelez-nous	-
12	W10322070		Washer		Appelez-nous	-
13	4344886		Support, Rubber		Appelez-nous	-
14	W10322060		Cover-top		Appelez-nous	-
15	W10322063		Insulation		Appelez-nous	-
16	W10322050		Cover-bottom		Appelez-nous	-
17	W10322062		Gasket		Appelez-nous	-
18	W10322061		Overlay-label		Appelez-nous	-
19	W10322049		Display Board		Appelez-nous	-
20	W10322048		Transformer Cable		Appelez-nous	-
21	W10322071		Extension Cable		Appelez-nous	-
22	W10322081		Sensor		Appelez-nous	-
23	WPW10322047		Control Panel Assembly   (Replaces: W10322047)				$ 358.95

    View Diagram in Separate Window       Print Part List
