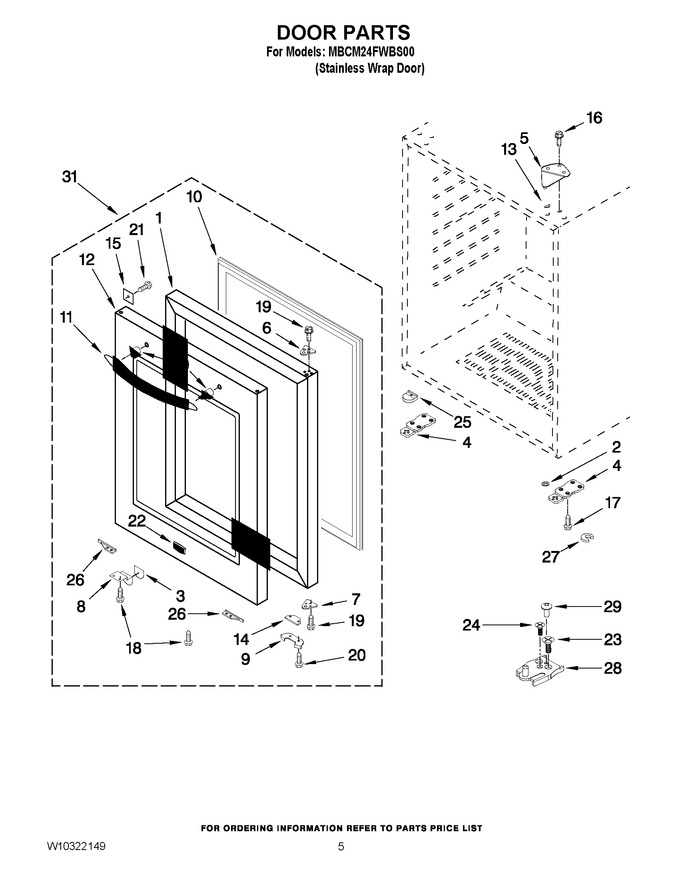

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10322068		Door Assembly		Appelez-nous	-
2	W11241702		Washer/bottom   (Replaces: W10162992)				$ 14.27
3	W10163191		Gasket, Push Plate				$ 14.85
4	W10319153		Hinge, Bottom (hinge Mount - Lh)		Appelez-nous	-
4	W10319152		Hinge, Bottom (hinge Mount - Rh)		Appelez-nous	-
5	W10319150		Hinge, Top		Appelez-nous	-
6	4344755		Spacer, Top Hinge				$ 20.03
7	4344756		Spacer, Bottom Hinge				$ 20.70
8	4344757		Actuator, Switch				$ 154.08
9	4344758		Door Stop   (Replaces: W10238067)		Appelez-nous	-
10	WPW10238068		Door Gasket   (Replaces: W10238068)				$ 347.01
11	W10319165		Handle, Door		Appelez-nous	-
12	W10322046		Door Skin, Stainless Steel		Appelez-nous	-
13	4344760		Washer				$ 15.91
14	4344788		Spacer, Door				$ 171.37
15	W10299088		Plate		Appelez-nous	-
16	4344796		Screw				$ 16.82
17	4344797		Screw, Lower Hinge		Appelez-nous	-
18	W10837731		Screw   (Replaces: W10204865)				$ 8.30
19	W10243123		Screw				$ 16.82
20	4344801		Screw				$ 16.82
21	W10319188		Screw, Handle		Appelez-nous	-
22	WPW10170766		Nameplate   (Replaces: W10319167)			Immediately	$ 70.50
23	W10162988		Screw		Appelez-nous	-
24	W10319185		Screw		Appelez-nous	-
25	W10319155		Hinge Cover		Appelez-nous	-
26	W10319168		Door Corner (rubber, Lh)		Appelez-nous	-
26	W10319169		Door Corner (rubber, Rh)		Appelez-nous	-
27	W10239396		Lock Washer		Appelez-nous	-
28	W10319154		Hinge, Bottom		Appelez-nous	-
29	W10319187		Screw				$ 73.51
30	WP8564951		Stud, Handle   (Replaces: W10319166)			Immediately	$ 19.33
31	W10322066		Door Assembly Complete		Appelez-nous	-
NI	8171420		Cleaner, Stainless Steel (12 Oz)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
