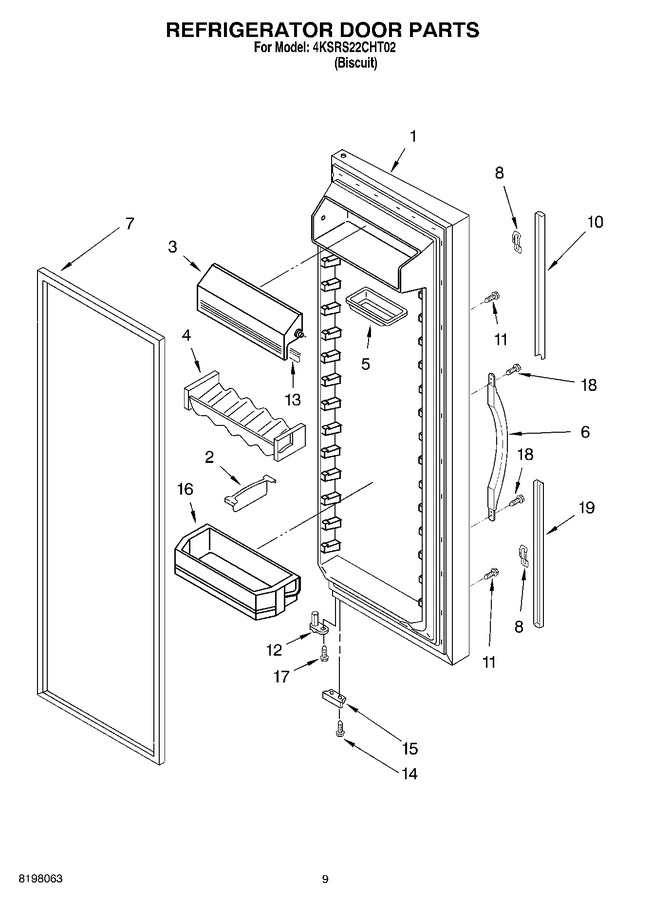

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214426T		Refrigerator Door (includes No.7) (biscuit)		Appelez-nous	-
2	2195497		Load, Lock (4)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Butter, Dish		Appelez-nous	-
6	2217185T		Handle (biscuit)		Appelez-nous	-
7	2159073		Door, Gasket Magnetic   (Replaces: 2221300)				$ 317.32
8	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
10	2217191T		Extension, Handle (biscuit)		Appelez-nous	-
11	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2200082		Bracket, Door Stop				$ 5.83
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	WP489491		Screw   (Replaces: 489491)				$ 6.95
19	2217186T		Extension, Handle		Appelez-nous	-
