SELECT A DIAGRAM

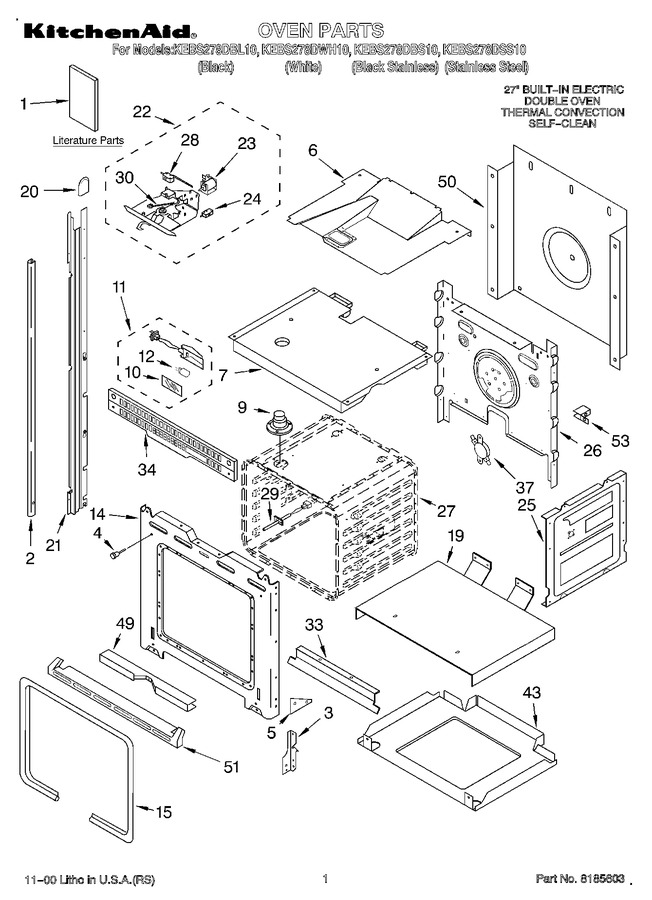

01 - Oven


02 - Control Panel


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4450850		Trim, Side (rh Black & Bs Mdls)		Appelez-nous	-
2	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
2	4449041		Trim, Side (white Model)				$ 5.27
2	WP8281236		Trim, Side (black & Bs Mdls)   (Replaces: 4449747)				$ 7.56
2	4452082		Trim, Side (lh Stainless Steel)		Appelez-nous	-
2	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
2	4450853		Trim, Side (lh Black & Bs Mdls)		Appelez-nous	-
2	4452081		Trim, Side (rh Stainless Steel)		Appelez-nous	-
3	4455722		Reciever, Hinge (left Hand)				$ 37.47
3	4455723		Reciever, Hinge (right Hand)				$ 37.24
4	4448520		Bumper, Door				$ 21.19
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 89.53
6	4452200		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
7	4455285		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 116.63
9	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 109.40
12	4449748		Screw				$ 13.55
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 67.32
14	4451739		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 176.77
19	4451477		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
20	4451605		Cap, Spacer				$ 38.55
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 7.56
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.48
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 226.52
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 226.89
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	4452312		Microswitch N.c.				$ 90.43
24	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
26	4452233		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
28	4451426		Microswitch		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
30	4451537		Spring, Latch		Appelez-nous	-
33	W10145009		Deflector, Vent (stainless Steel Model)   (Replaces: 4452489)				$ 77.72
33	4450280		Deflector, Vent (black, White & Black Stainless Models)		Appelez-nous	-
34	4452266		Vent, Center				$ 60.71
37	WP9759242		Thermostat (tod)   (Replaces: 4452223)			Immediately	$ 85.57
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
43	4455529		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.86
49	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 142.92
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4452480		Trim, Bottom (stainless Steel Model)		Appelez-nous	-
51	4452152		Trim, Bottom (bracket, Mounting Bottom Trim)				$ 33.50
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4448475		Trim, Bottom (black & Bs Models)		Appelez-nous	-
53	4452336		Insulation, Bottom Stainless Steel Model		Appelez-nous	-
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
53	4449315		Insulation, Wrap				$ 64.81
53	4450364		Insulation, Back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
