SELECT A DIAGRAM

01 - Oven


02 - Control Panel

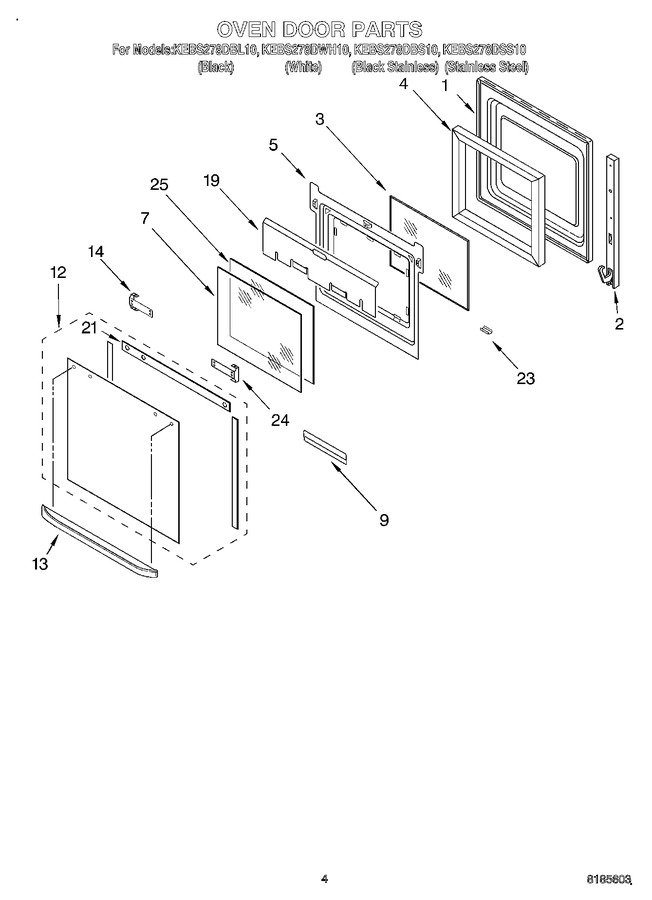

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451718		Door Liner		Appelez-nous	-
2	WP4455525		Hinge, Door (black Stainless & Stainless Steel Models)   (Replaces: 4455525)			Immediately	$ 88.29
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
2	WP4455524		Hinge, Door (black & White Models)   (Replaces: 4455524)			Immediately	$ 78.20
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	4451670		Retainer, Glass		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 208.31
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	4451668		Retainer, Glass		Appelez-nous	-
12	4452315		Door Glass, Assy (stainless Steel Model)				$ 274.20
12	4452071		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452072		Door Glass, Assy (white Model)		Appelez-nous	-
12	4452077		Door Glass, Assy (black-stainless)		Appelez-nous	-
13	4448411		Door Handle (black & Bs Models)		Appelez-nous	-
13	4452087		Door Handle (stainless Steel Model)		Appelez-nous	-
13	4448412		Door Handle (white Model)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	4450813		Bracket, Handle Black, White & Black Stainless Models				$ 24.20
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4450361		Shield, Heat		Appelez-nous	-
21	4451673		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black & Bs Models)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
24	4452487		Bracket, Handle Stainless Steel Model (right Hand)		Appelez-nous	-
24	4452488		Bracket, Handle Stainless Steel Model (left Hand)		Appelez-nous	-
25	4455256		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
