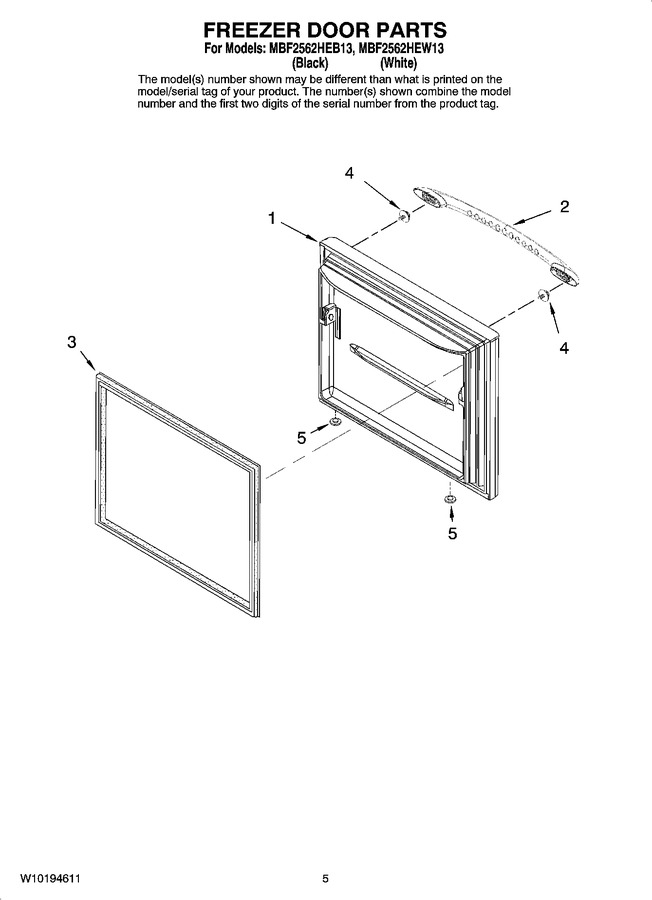

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10188317 | Door, Freezer (white) |
|
- | |||||
| 1 | W10188318 | Door, Freezer (black) |
|
- | |||||
| 2 | W10119654 | Handle, Door (white) |
|
- | |||||
| 2 | W10119656 | Handle, Door (black) |
|
$ 75.86 | |||||
| 3 | W10443319 | Gasket, Door (white) (Replaces: W10133249) |
|
$ 281.76 | |||||
| 3 | W10436252 | Gasket, Door (black) (Replaces: W10131754) |
|
Immediately | $ 362.28 | ||||
| 4 | WP12992902 | Screw, Handle (Replaces: 12992902) |
|
$ 11.91 | |||||
| 5 | 10712401 | Plug, Button (2) (white) |
|
$ 7.79 | |||||
| 5 | 67004838 | Plug, Button (2) (black) |
|
$ 11.21 |
