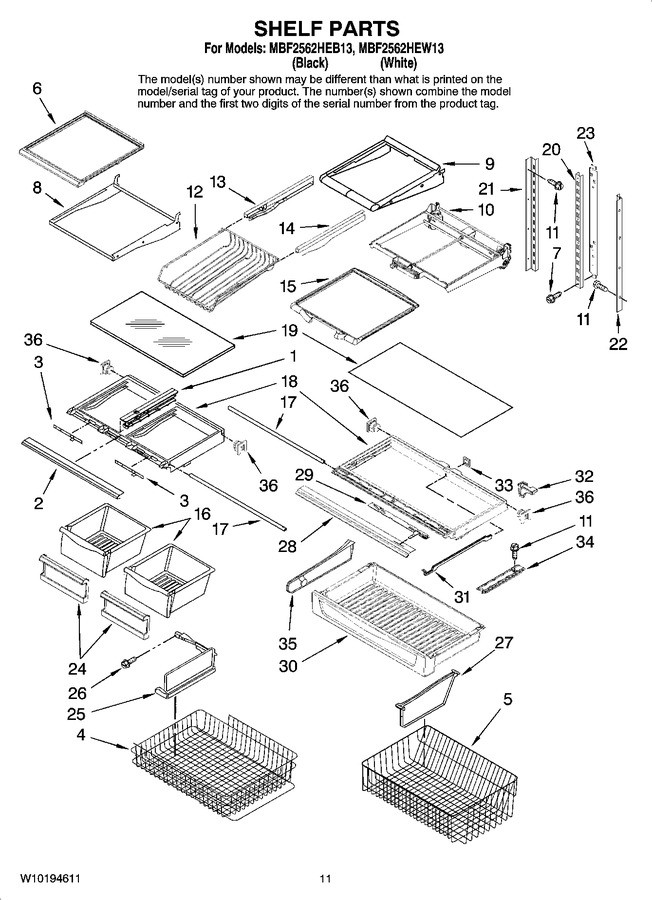

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: 67004514) |
|
Immediately | $ 33.37 | ||||
| 2 | WPW10231345 | Trim, Crisper (Replaces: 67004510) |
|
$ 137.67 | |||||
| 3 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 4 | 67004987 | Basket, Freezer (upper) |
|
$ 244.35 | |||||
| 5 | WPW10503184 | Basket, Freezer (lower) (Replaces: 67006025) |
|
$ 250.08 | |||||
| 6 | 67002917 | Shelf (2) |
|
- | |||||
| 7 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.79 | |||||
| 8 | 61005966 | Frame, Shelf (2) |
|
- | |||||
| 9 | 67004552 | Shelf, Can Rack |
|
- | |||||
| 10 | Y61006052 | Frame Assy., Elevator Shelf |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 12 | 67004553 | Rack, Can |
|
- | |||||
| 13 | 67002190 | Glide, Left |
|
$ 23.00 | |||||
| 14 | WP67002191 | Glide, Right (Replaces: 67002191) |
|
Immediately | $ 35.62 | ||||
| 15 | 61004747 | Shelf, Elevator |
|
- | |||||
| 16 | WP67004515 | Pan, Crisper (Replaces: 67004515) |
|
Immediately | $ 176.72 | ||||
| 17 | WP12642303WD | Brace, Crisper (Replaces: 67002748) |
|
$ 112.26 | |||||
| 18 | WP67003854 | Frame, Crisper (Replaces: 67003854) |
|
Immediately | $ 227.55 | ||||
| 19 | WP67006704 | Glass, Crisper Cover (Replaces: 67006704) |
|
$ 212.77 | |||||
| 20 | 67004439 | Ladder, Center |
|
- | |||||
| 21 | 67004559 | Ladder, Left |
|
- | |||||
| 22 | 67004558 | Ladder, Right |
|
- | |||||
| 23 | 67003721 | Adapter, Center Ladder |
|
- | |||||
| 24 | WP67005923 | Front, Crisper Pan (Replaces: 67005923) |
|
$ 79.13 | |||||
| 25 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 | |||||
| 26 | 67006608 | Screw |
|
- | |||||
| 27 | 67006644 | Divider, Basket (lower) |
|
- | |||||
| 28 | 67004554 | Trim, Pantry Front |
|
- | |||||
| 29 | 67002002 | Slide,pantry |
|
Immediately | $ 16.04 | ||||
| 30 | 67005924 | Pan, Pantry |
|
- | |||||
| 31 | 67004555 | Bar, Control |
|
- | |||||
| 32 | WP12531601 | Tunnel,pantry (Replaces: 67002004) |
|
$ 11.04 | |||||
| 33 | 67002005 | Gasket, Pantry |
|
- | |||||
| 34 | WP67001719 | Track, Pantry (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 35 | 67004556 | Divider, Pantry |
|
$ 21.41 | |||||
| 36 | WP12603701 | Support, Crisper Frame (Replaces: 12603701) |
|
$ 10.83 |
