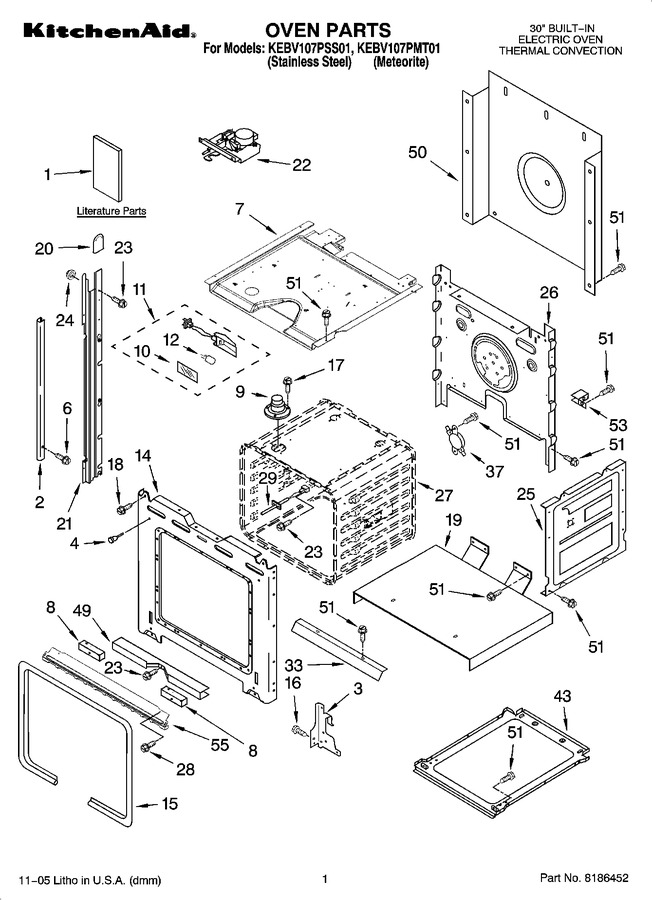

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4448687		Easy Set Guide (canadian)		Appelez-nous	-
1	9759133		French		Appelez-nous	-
1	4449264		Easy Set Guide		Appelez-nous	-
1	3191638		English		Appelez-nous	-
1	8301928		Installation, Mwo Trim Kit Safer Cooking Tips		Appelez-nous	-
1	8303946		Installation/ Undercounter		Appelez-nous	-
1	8300651		Installation Instructions		Appelez-nous	-
1	8304062		Use & Care Guide (pro-line)		Appelez-nous	-
1	8304069		Use & Care Guide (oven) Tech Sheet		Appelez-nous	-
1	8302067		English		Appelez-nous	-
1	8302069		French		Appelez-nous	-
2	8302486		Trim, Side (left Hand) (meteorite)		Appelez-nous	-
2	8302483		Trim, Side (right Hand) (stainless Steel)		Appelez-nous	-
2	8302485		Trim, Side (right Hand) (meteorite)		Appelez-nous	-
2	8302484		Trim, Side (left Hand) (stainless Steel)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
6	WP8281236		Screw   (Replaces: 8281236)				$ 8.16
7	8303099		Top Chassis				$ 70.97
8	4452490		Spacer, Foam				$ 34.83
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	9759060		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
17	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
18	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 127.79
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 126.74
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
28	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
33	9760678		Deflector, Vent		Appelez-nous	-
37	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 9759242)			Immediately	$ 85.57
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Support, Bracket		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
55	4450365		Insulation, Back				$ 70.95
55	8301629		Trim, Bottom (meteorite)		Appelez-nous	-
55	8301590		Trim, Bottom (stainless Steel)		Appelez-nous	-
55	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
