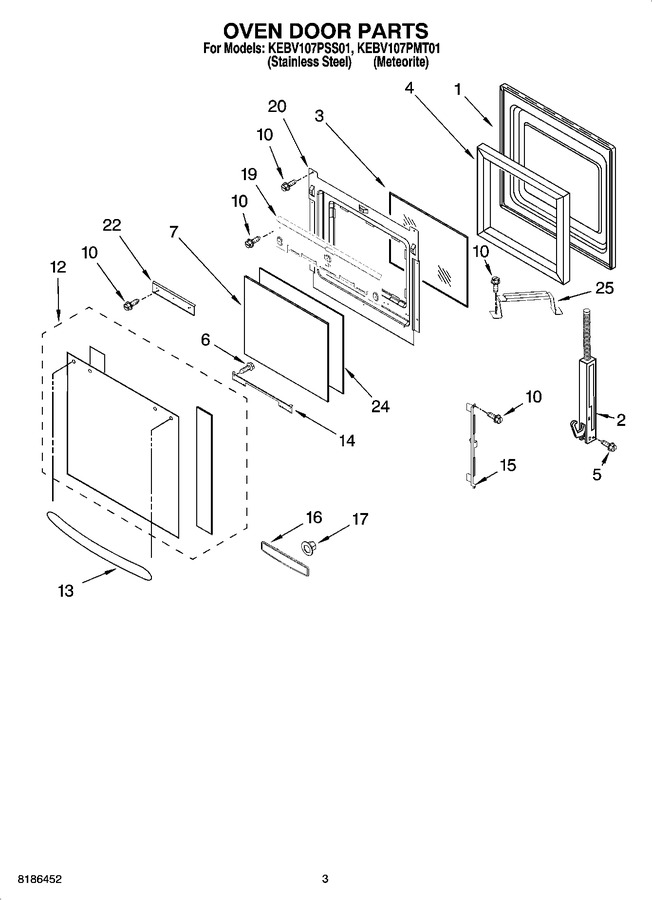

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Liner, Door   (Replaces: 9759413)				$ 370.46
2	WP9760579		Hinge, Door (r.side (orange))   (Replaces: 9760579)			Immediately	$ 71.50
2	WP9760574		Hinge, Door (l.side (orange))   (Replaces: 9760580)			Immediately	$ 67.07
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	4457292		Door Glass, Assy (stainless Steel)		Appelez-nous	-
12	4457293		Door Glass, Assy (meteorite)		Appelez-nous	-
13	8301679		Door Handle		Appelez-nous	-
14	8303668		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	8531789		Nameplate		Appelez-nous	-
17	4453107		Fastener		Appelez-nous	-
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 39.22
20	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
22	4457114		Shield, Heat-bottom				$ 217.79
24	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
25	9759230		Bracket (3rdglass)				$ 36.30
