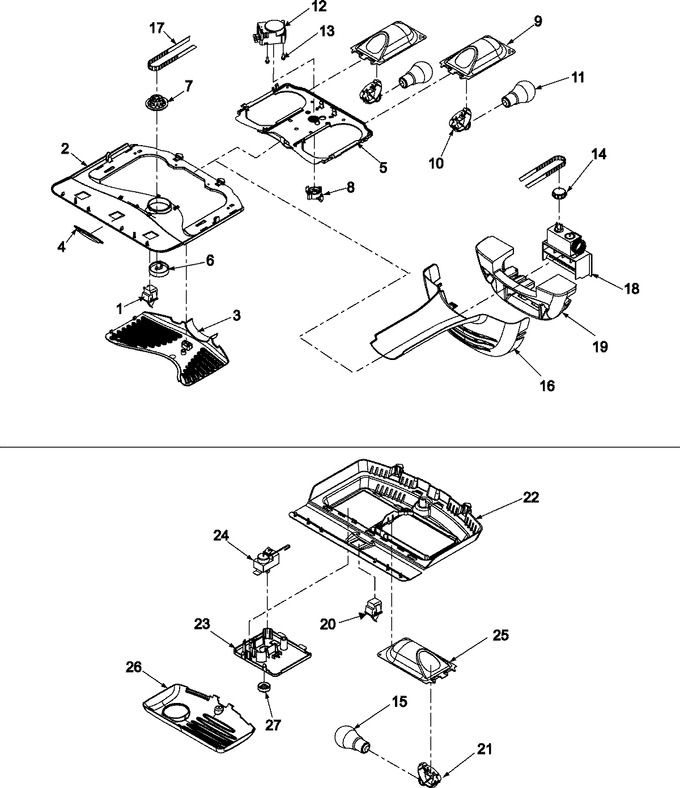

MBR1952KES | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	W11384469	Switch, Light (Replaces: C3680310)	10		Immediately	$ 39.09
2	67002083	Module, Light	10	Appelez-nous	-
3	67002301	Cover, Ref Light	10	Appelez-nous	-
4	67002438	Logo, Light Module	10	Appelez-nous	-
5	67002085	Pan, Timer/light Housing	10			$ 46.49
6	67002512	Knob, Front Damper	10			$ 35.96
7	67001033	Knob, Gear	10			$ 18.96
8	67001034	Tensioner, Belt	10			$ 9.72
9	W11702858	Housing, Light (Replaces: 67001035)	10			$ 90.11
10	W11447232	Socket, Light (Replaces: Y12570701)	10		Immediately	$ 13.87
11	W11679940	Bulb, Light (Replaces: 67003883)	10		Immediately	$ 11.30
12	WP67001036	Timer, Defrost (Replaces: 67001036)	10		Immediately	$ 150.57
13	12990514	Screw, Sm	10	Appelez-nous	-
14	67001037	Gear, Damper	10			$ 46.16
15	W11679940	Bulb, Light (Replaces: 67003883)	10		Immediately	$ 11.30
16	67003878	Cover, Damper	10	Appelez-nous	-
17	67001040	Belt, Damper	10			$ 35.28
18	67001041	Control, Damper	10	Appelez-nous	-
19	67003803	Insulation, Damper	10	Appelez-nous	-
20	W11396033	Switch, Light/intlk (Replaces: 67005653)	10		Immediately	$ 37.30
21	W11447232	Socket, Light (Replaces: Y12570701)	10		Immediately	$ 13.87
22	67001286	Module, Fz Control	10	Appelez-nous	-
23	67001045	Panel, Fz Control Mounting	10			$ 6.47
24	WP67003000	Control, Fz Temperature (Replaces: 67001046)	10		Immediately	$ 184.98
25	W11702858	Housing, Light (Replaces: 67001035)	10			$ 90.11
26	67001285	Cover, Fz Light	10			$ 26.46
27	67003420	Knob, Fz Control	10			$ 55.42
28	12966301	Harness, Fz Module	10	Appelez-nous	-
28	67001043	Harness, Ff Module	10	Appelez-nous	-
