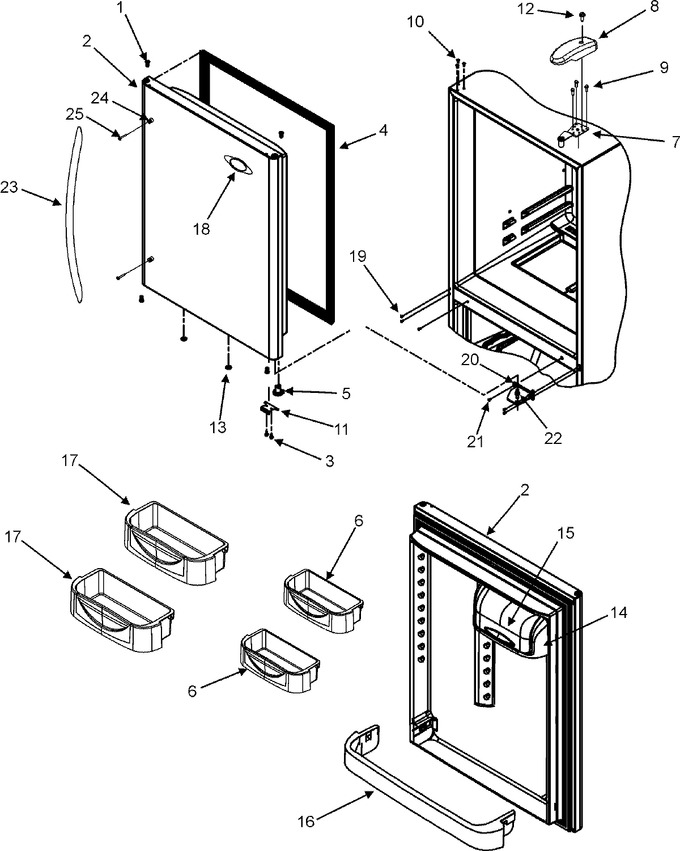

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 10 |
|
$ 22.10 | ||||
| 2 | 67006961 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 8.57 | ||||
| 4 | WPW10436245 | Gasket, Ref Door (blk) (Replaces: 67003549) | 10 |
|
$ 362.36 | ||||
| 5 | WP67003639 | Closure, Door (blk) (Replaces: 67003639) | 10 |
|
$ 90.32 | ||||
| 6 | 67001140 | Bucket, Ref Dr (small) | 10 |
|
$ 33.04 | ||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 47.13 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 49.71 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 8.43 | |||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 8.15 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 14.75 | |||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.55 | |||
| 13 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 11.21 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 88.01 | |||
| 15 | WP67003637 | Door, Dairy (Replaces: 67003637) | 10 |
|
Immediately | $ 82.67 | |||
| 16 | 67002505 | Retainer, Door | 10 |
|
- | ||||
| 17 | 67001020 | Bucket, Ref Dr (med) | 10 |
|
$ 32.95 | ||||
| 18 | 2324038 | Nameplate (Replaces: 67006439) | 10 |
|
$ 71.59 | ||||
| 19 | WP67006715 | Screw (Replaces: 67006715) | 10 |
|
$ 7.55 | ||||
| 20 | WP12607104ED | Hinge, Center (blk) (Replaces: 67007043) | 10 |
|
$ 167.35 | ||||
| 21 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.72 | ||||
| 22 | WP67006744 | Pin, Center Hinge (Replaces: 67006744) | 10 |
|
$ 8.68 | ||||
| 23 | W11690159 | Handle Assy., Door (stnls) (Replaces: 67006391) | 10 |
|
$ 173.76 | ||||
| 24 | WP67006113 | Mount, Handle (Replaces: 67006113) | 10 |
|
Immediately | $ 12.56 | |||
| 25 | WP3387230 | Screw, Mount (Replaces: 67002935) | 10 |
|
Immediately | $ 8.54 |
