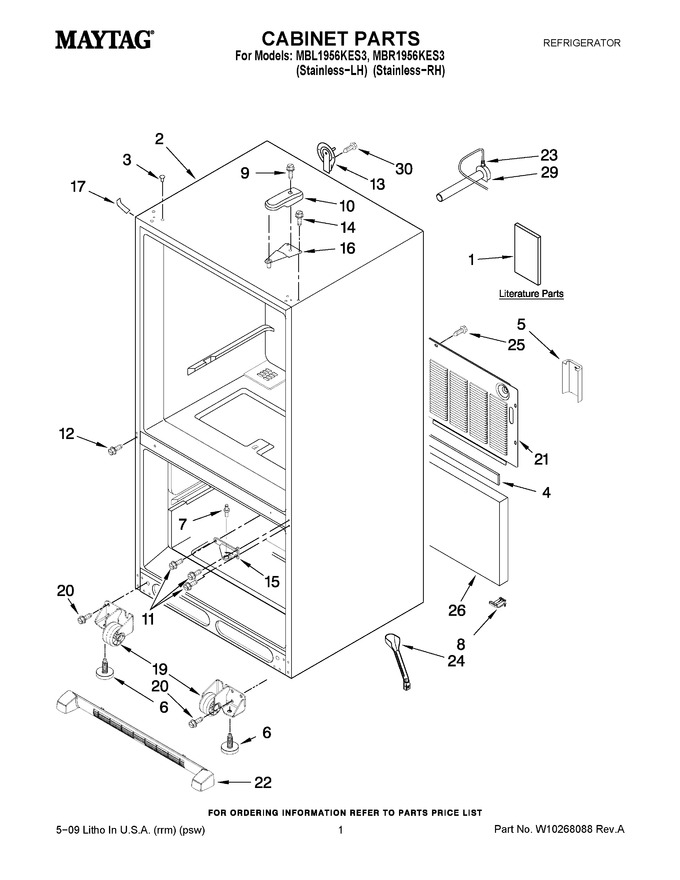

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10238840		Tech Sheet		Appelez-nous	-
1	W10183293		Energy Guide		Appelez-nous	-
1	W10175446		Use & Care Guide		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: M0310731)			Immediately	$ 8.15
4	B5759655		Gasket				$ 13.03
5	W10208592		Guard, Water Valve		Appelez-nous	-
6	10354002		Foot, Brake			Immediately	$ 7.38
7	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 8.78
8	W10216614		Sweep, Water Valve				$ 18.51
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	67001012		Cover, Hinge (black)   (Replaces: 12477601B)				$ 49.71
11	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 8.43
12	WP98165		Screw   (Replaces: 12990521)				$ 8.57
13	12726003		Cover, Water Line				$ 19.19
14	WP489349		Screw (3)   (Replaces: 12992403)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 167.35
16	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 47.13
17	67003485		Cover, Corner (black )   (Replaces: 12587703B)			Immediately	$ 22.14
19	12580304		Roller Assembly				$ 5.84
20	67006564		Screw (4)   (Replaces: 12991302)			Immediately	$ 8.15
21	W10210978		Cover, Unit				$ 201.78
22	WPW10534167		Grille, Toe (black)   (Replaces: W10236650)				$ 91.42
23	WPM0114003		Clip, Speed   (Replaces: M0114003SP)				$ 11.60
24	W10619951		Tube, Drain   (Replaces: W10210987)			Immediately	$ 42.39
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
26	12820505		Fiber, Acoustic				$ 71.70
29	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 119.86
30	WP98165		Screw   (Replaces: 12990504)				$ 8.57
