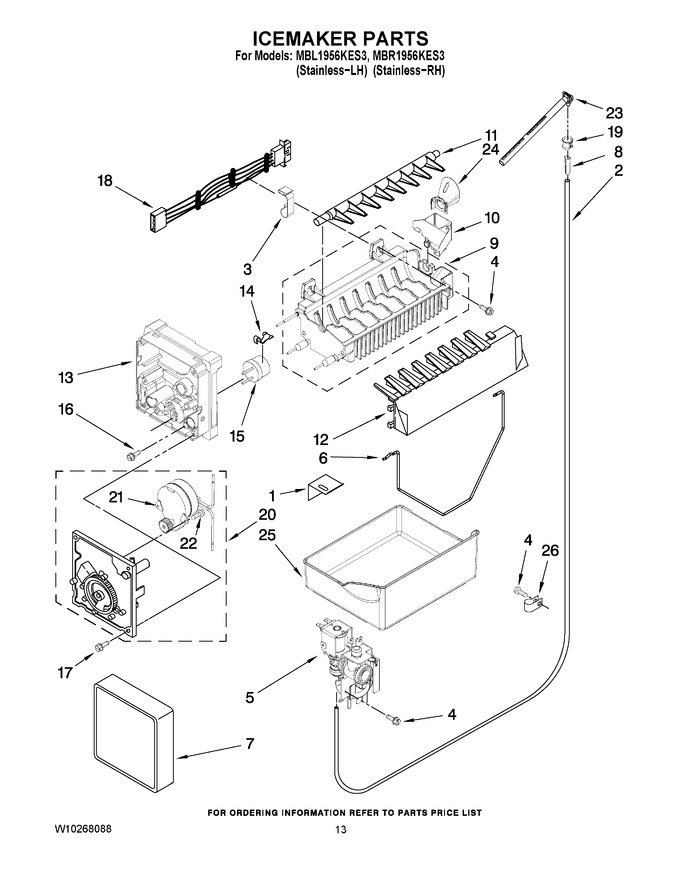

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2256087		Bracket, Ice Maker   (Replaces: 2256086)				$ 93.00
2	W11120581		Tube, Plastic   (Replaces: B5705333SP)				$ 118.98
3	10526702		Clamp		Appelez-nous	-
4	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
5	WP2315576		Valve-inlet   (Replaces: W10219716)			Immediately	$ 95.98
6	WP67004028		Arm, Shutoff   (Replaces: 12868001)			Immediately	$ 91.35
7	WPW10289690		Cover, Front   (Replaces: 12582501)			Immediately	$ 8.40
8	WPA3223101		Insert, Tube   (Replaces: A3223101SP)			Immediately	$ 7.82
9	WPW10190929		Mold & Heater Assembly (also Order 542638)   (Replaces: W10122527)				$ 233.15
10	W10122561		Cup, Water Fill   (Replaces: 628515)				$ 27.77
11	WP627843		Ejector   (Replaces: 627843)				$ 83.60
12	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 86.05
13	WP2195914		Support   (Replaces: 2194712)				$ 104.57
14	WP2315522		Retainer   (Replaces: 2315522)				$ 11.05
15	WP627985		Thermostatorder 542369 Cement Alumilastic)   (Replaces: 628397)				$ 109.18
16	8533917		Screw				$ 13.37
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	WPD7813010		Harness, Ice Maker   (Replaces: D7813011)			Immediately	$ 73.97
19	WPM0114003		Clip, Speed   (Replaces: M0114003SP)				$ 11.05
20	8201515		Module Assembly (includes Items 21& 22)   (Replaces: W10223929)			Immediately	$ 141.64
22	489136		Screw				$ 10.29
23	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 114.15
24	12918001		Funnel, Fill Tube			Immediately	$ 12.41
25	WP67001255		Pan, Ice   (Replaces: 12695001V)				$ 203.08
26	W11456069		Clamp-tube   (Replaces: M0108107)			Immediately	$ 21.33
100	D7824706Q		Complete Ice Maker   (Replaces: W10190978)			Immediately	$ 167.35
NI	799344		Paint, Bulk (1 Qt.) (black Uncut))				$ 237.46
NI	1117510		Torx Key				$ 5.84
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.18
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	350942		Paint, Pressurized Spray (12 Oz) (primer, White)				$ 89.66
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 57.04
NI	4392900		Paint, Bulk (1 Qt.) (biscuit (uncut)		Appelez-nous	-
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.07
NI	31462		Cleaner, 10 Oz. (stainless Steel)		Appelez-nous	-
