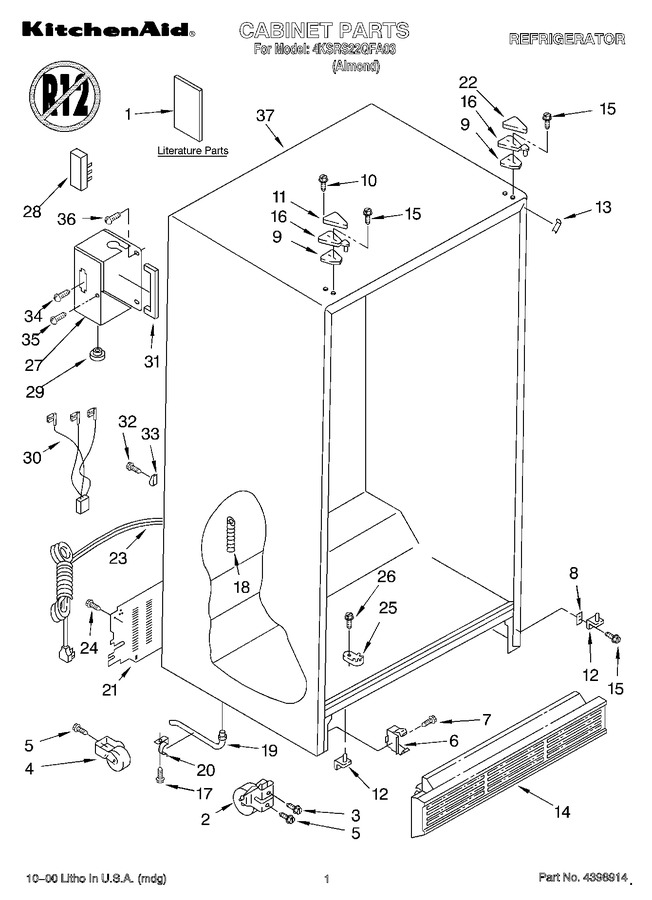

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2206122 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT628371 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | LIT2204237 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 11.88 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 40.17 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 6 | WP2155013 | Clip, Grille (2) (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 8 | 2209697 | Shim |
|
$ 41.25 | |||||
| 9 | 2196048 | Shim, Hinge Top |
|
- | |||||
| 10 | 489284 | Screw |
|
- | |||||
| 11 | 2150343 | Hinge Cover (almond) |
|
- | |||||
| 12 | 8201707 | Hinge Bottom (2) (Replaces: 2171851) |
|
$ 88.90 | |||||
| 13 | 2196095 | Filler, Wrapper (almond) |
|
- | |||||
| 14 | 2198469N | Grille (almond) |
|
- | |||||
| 15 | WP999367 | Screw (Replaces: 489367) |
|
$ 7.86 | |||||
| 16 | WP2196046 | Hinge, Top (2) (Replaces: 2196046) |
|
$ 104.44 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 18 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 50.90 | ||||
| 19 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 31.33 | ||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.74 | |||||
| 21 | 2204420 | Cover, Unit |
|
- | |||||
| 22 | 1119789 | Hinge Cover (almond) |
|
- | |||||
| 23 | 1129332 | Service Cord |
|
- | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.43 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.87 | |||||
| 27 | 2188194 | Enclosure, Terminal Block |
|
- | |||||
| 28 | 1129346 | Terminal Block |
|
- | |||||
| 29 | 1129449 | Bushing |
|
- | |||||
| 30 | 2209657 | Wire Assembly, Terminal Block |
|
- | |||||
| 31 | 2167227 | Gasket |
|
- | |||||
| 32 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 33 | 489348 | Clamp-nylon |
|
- | |||||
| 34 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 10.82 | ||||
| 35 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 36 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 |
