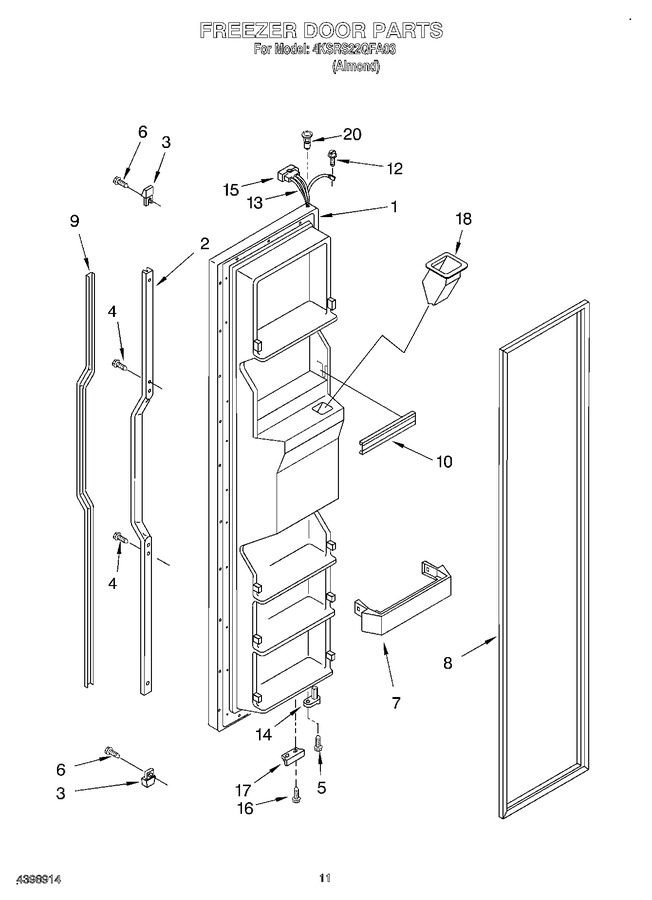

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195122N		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	2194776N		Retainer, Insert (almond)		Appelez-nous	-
3	2194778N		End Cap (2) (almond)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.82
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
7	2171071		Shelf Bin (4)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service)				$ 308.19
9	2173831		Insert, Handle (almond)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
12	WP489128		Screw   (Replaces: 488500)				$ 10.88
13	2198272		Wire Harness		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP2154473		Connector   (Replaces: 2162412)				$ 23.65
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2195950		Bracket, Door Stop				$ 5.84
18	2180204		Chute, Ice		Appelez-nous	-
20	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
