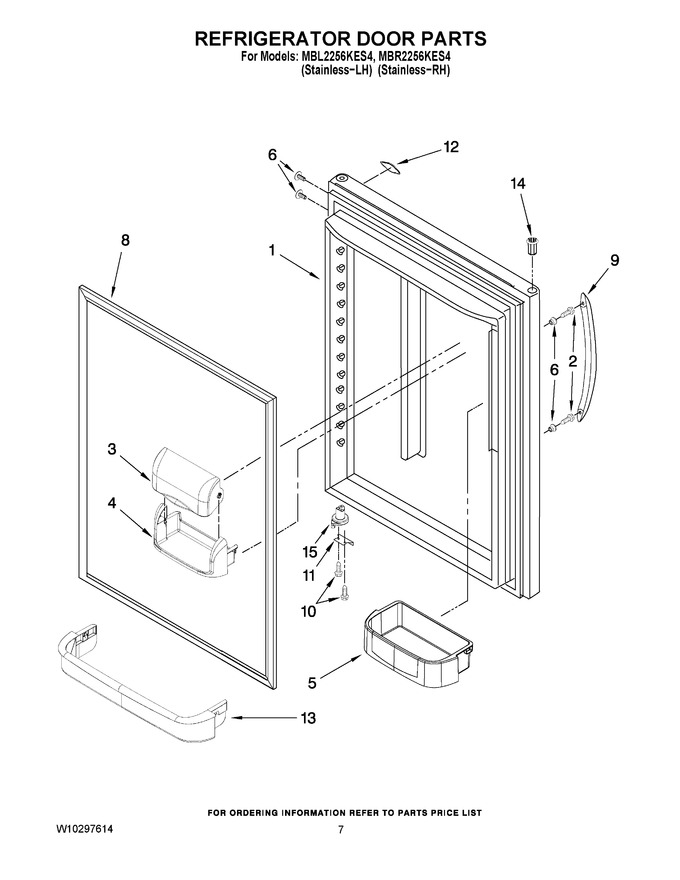

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13023891SQ | Door, Refrigerator (stainless-rh) |
|
- | |||||
| 1 | 13023893SQ | Door, Refrigerator (stainless-lh) |
|
- | |||||
| 2 | 67006901 | Screw (Replaces: 12991703) |
|
Immediately | $ 9.49 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | 67004040 | Bucket, Medium (4) (Replaces: 12801902) |
|
$ 95.99 | |||||
| 6 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 8 | W10164039 | Gasket, Door (black) |
|
$ 343.59 | |||||
| 9 | W11690159 | Handle, Door (stainless) (Replaces: W10197295) |
|
$ 173.76 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 12 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 13 | 12690503 | Retainer, Ref Door |
|
$ 48.08 | |||||
| 14 | 67004978 | Bushing (4) (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 |
